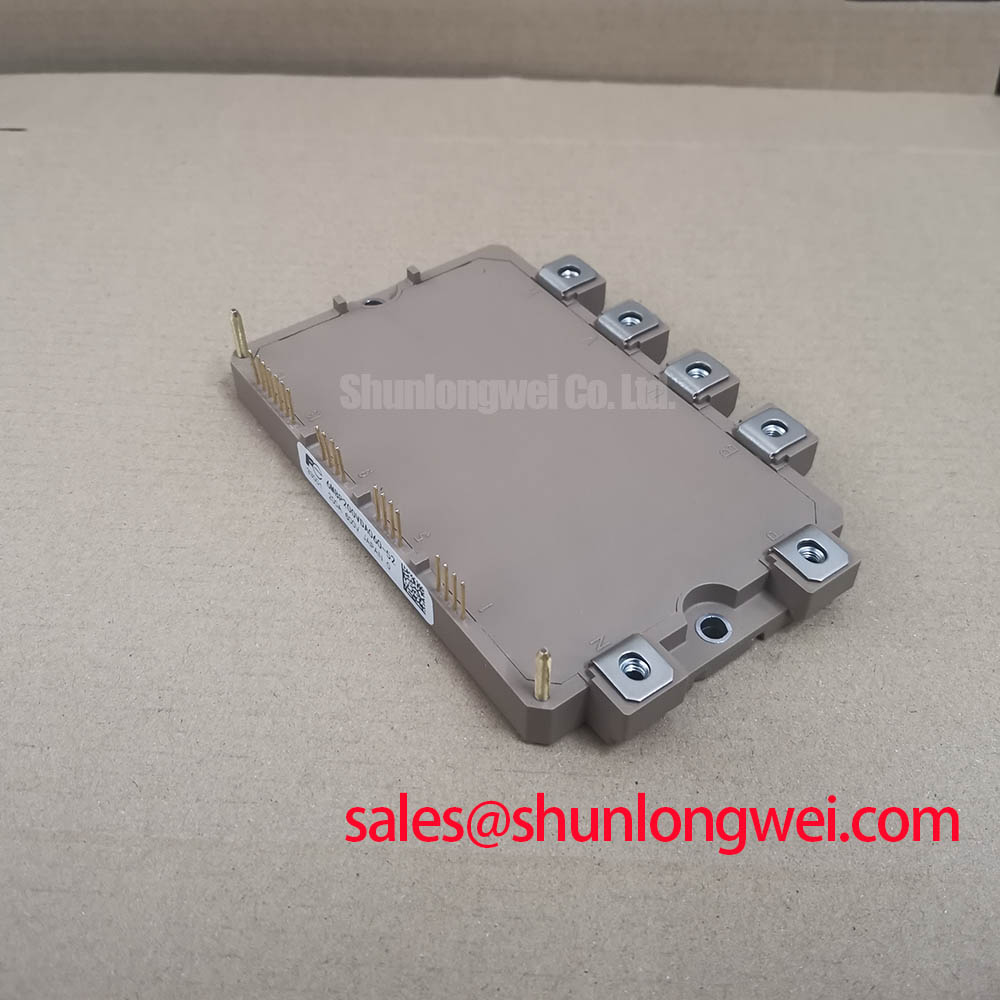

FUJI 6MBP200VDA060-50 IGBT Module

Features

• Temperature protection provided by directly detecting the junction temperature of the IGBTs

• Low power loss and soft switching

• High performance and high reliability IGBT with overheating protection

• Higher reliability because of a big decrease in number of parts in built-in control circuit

Maximum Ratings and Characteristics

Absolute Maximum Ratings (TC=25ºC, VCC=15V unless otherwise specified)

• Collector-Emitter Voltage (*1): VCES 0-600V
• Short Circuit Voltage: VSC 200-400V
• Inverter Collector Current: DCIC -200A 1ms, Icp -400A, Duty=50.3% (*2), IC -200A
• Collector Power Dissipation: 1 device (*3) PC -462W
• Brake Collector Current: DCIC --A 1ms, Icp --A
• Forward Current of Diode: IF --A
• Collector Power Dissipation: 1 device (*3) PC --W
• Supply Voltage of Pre-Driver (*4): VCC -0.5-20V
• Input Signal Voltage (*5): Vin -0.5VCC+0.5V
• Alarm Signal Voltage (*6): VALM -0.5VCCV
• Alarm Signal Current (*7): IALM -20mA
• Junction Temperature: Tj -150ºC
• Operating Case Temperature: Topr -20-110ºC
• Storage Temperature: Tstg -40-125ºC
• Solder Temperature (*8): Tsol -260ºC
• Isolating Voltage (*9): Viso -AC2500Vrms
• Screw Torque:

  • Terminal (M4): -- 1.7Nm

*Note 1: VCES shall be applied to the input voltage between terminal P-(U,V, W) and (U,V, W, B)-N.

*Note 2: Duty=125ºC/Rth(j-c)D /(IF×VF Max.)×100

*Note 3: PC=125ºC/Rth(j-c)Q (Inverter & Brake)

*Note 4: VCC shall be applied to the input voltage between terminal No.4 and 1, 8 and 5, 12 and 9, 14 and 13.

*Note 5: Vin shall be applied to the input voltage between terminal No.3 and 1, 7 and 5, 11 and 9, 15~18 and 13.

*Note 6: VALM shall be applied to the voltage between terminal No.2 and 1, 6 and 5, 10 and 9, 19 and 13.

*Note 7: IALM shall be applied to the input current to terminal No.2,6,10 and 19.

*Note 8: Immersion time 10±1sec. 1time.

*Note 9: Terminal to base, 50/60Hz sine wave 1min. All terminals should be connected together during the test.
