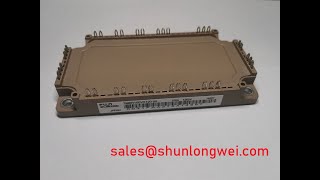

FUJI 7MBR100VX120-50 IGBT Module

Features

Low VCE(sat)

Compact Package

P.C.Board Mount Module

Converter Diode Bridge Dynamic Brake Circuit

RoHS compliant product

Applications

Inverter for Motor Drive

AC and DC Servo Drive Amplifier

Uninterruptible Power Supply

Maximum ratings and characteristics

.Absolute maximum ratings (Tc=25°C unless without specified)

Collector-Emitter voltage Vces:1200V

Gate-Emitter voltage VGES:±20V

Collector current Ic:100A

Collector current Icp:200A

Collector power dissipation Pc:520W

Collector-Emitter voltage VCES:2500V

Operating junction temperature Tj:+150°C

Storage temperature Tstg :-40 to +125°C

Mounting(*3) M5 screw torque3.5 N·m
