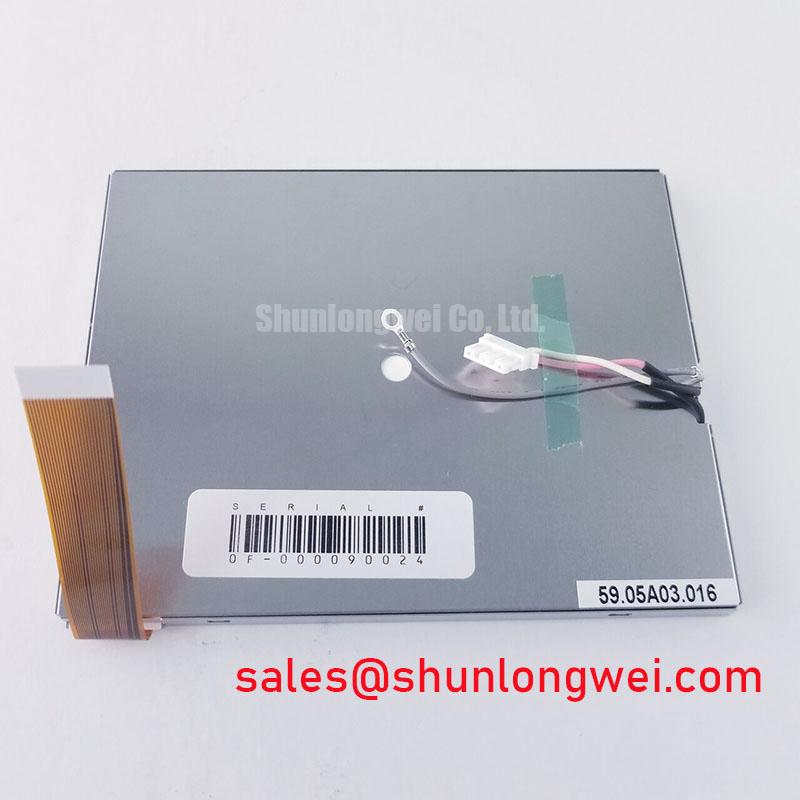

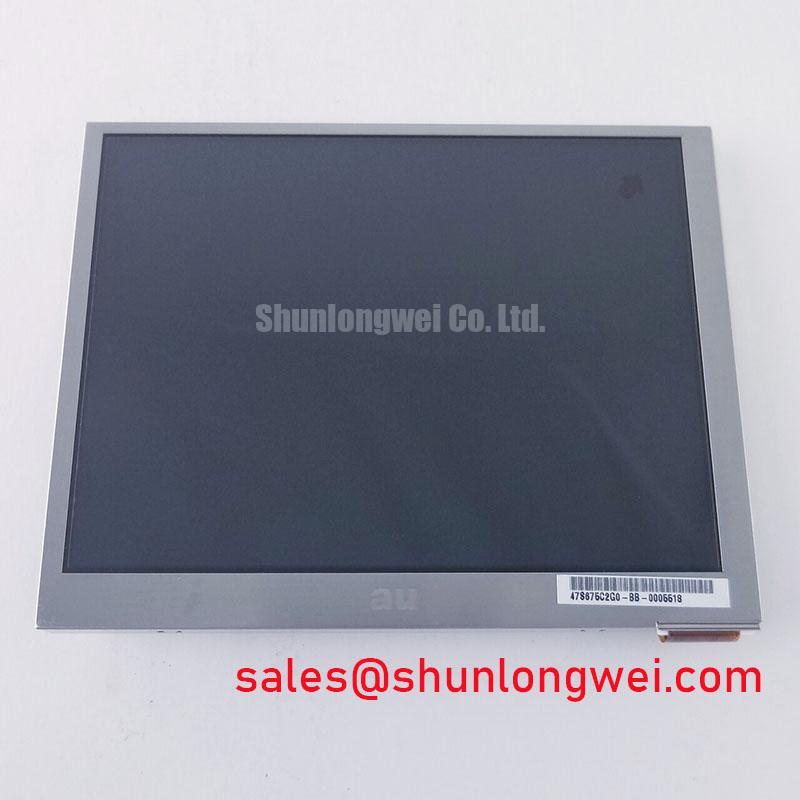

AUO A056DN01 V7 LCD Display

Manufacturer AUO

Model Name A056DN01 V7

Screen Size 5.6 inch

Screen Type LCM ,   a-Si TFT-LCD

Pixel Number 320(RGB)×234   71PPI

Arrangement RGB Vertical Stripe

Active Area(mm) 113.28 × 84.708 (H×V)

Outline(mm) 126.5 × 100 (H×V×D)

Bezel Area(mm) 115.88 × 87.30 (H×V)

Luminance300 cd/m² (Typ.)

Contrast Ratio 300 : 1 (Typ.) (TM)

Viewing Angle 65/65/45/65 (Typ.)(CR≥10) Left / Right / Up / Down

Response 12/18 (Typ.)(Tr/Td) ms

Good View at 6 o'clock

Work Mode TN, Normally White, Transmissive

Color Depth Full color

Backlight 2S1P WLED , 10K hours , No Driver

MassTBD

Used for Digital Photo Frame Portable DVD Player Video Door Phone

Touchscreen Without

Signal Type TFT Specific Analog RGB , 26 pins FPC

Voltage Supply 3.3/5.25/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)

Max. Ratings Storage Temp.: -25 ~ 80 °C    Operating Temp.: -10 ~ 60 °C
