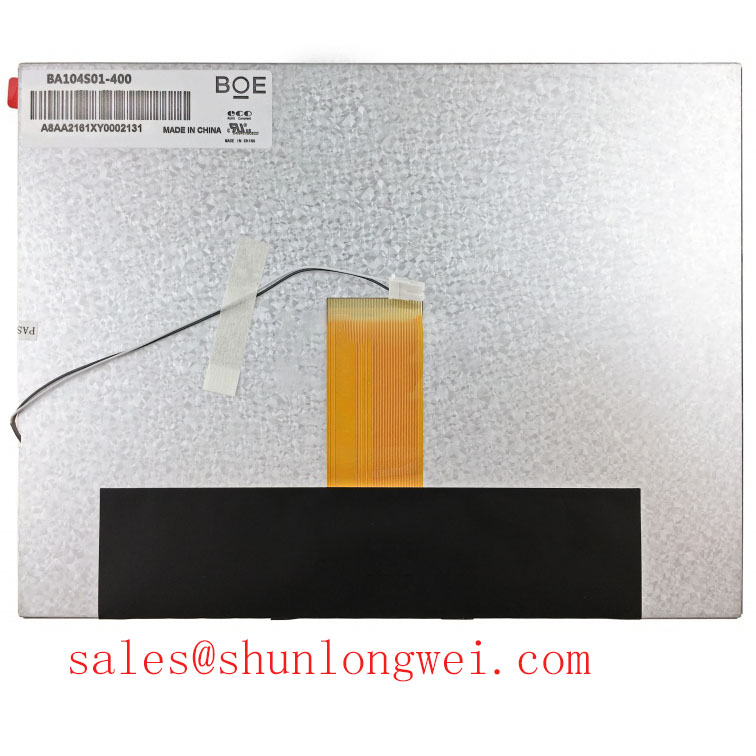

Sell BA104S01-400, #BOE #BA104S01-400 Stock, BA104S01-400 BOE 10.4 inch LCM 800×600 350 800:1 80/80/65/75 262K/16.7M WLED TTL, #LCD_Display, #LCD, #BA104S01_400
Email: sales@shunlongwei.com
URL:
https://www.slw-ele.com/ba104s01-400.html
- Brand: BOE
- Model: P/N BA104S01-400
- Diagonal Size: 10.4 inch
- Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
- Resolution: 800(RGB)×600, SVGA, 96PPI Pixel Format, RGB Vertical Stripe
- Active Area: 211.2(W)×158.4(H) mm
- Bezel Opening: 214.4(W)×161.6(H) mm
- Outline Size: 228.4(W)×175.4(H) mm
- Surface: Antiglare
- Brightness: 350 cd/m² (Typical)
- Contrast Ratio: 800:1 (Typical) (TM)
- Viewing Angle: 80/80/65/75 (Typical) (CR≥10) Left / Right / Up / Down
- Display Mode: TN (Twisted Nematic), Normally White, Transmissive
- IPS Family: AAS, ADS, AHVA, FFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
- VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
- Response Time: 30 ms (Typical) (Tr+Td)
- Display Colors: 262K/16.7M, 55% NTSC
- Lamp Type: 3S12P WLED, 20K hours, Without Driver
- Frequency:
- 60Hz
- 120Hz (60HZ Input): Embedded MEMC Circuit
- 120Hz+120Hz: 120Hz Panel+120Hz Backlight
- 240Hz (60HZ Input): Embedded MEMC Circuit
- Touch Screen: Without
- Panel Weight: To Be Determined (TBD)
- Application: Digital Photo Frame, Home Appliance
- Signal Interface: Parallel RGB (1 ch, 6/8-bit), 60 pins FPC (Flexible Printed Circuit)
- Input Voltage: 3.3/9/18/-8V (Typical) (VCC/AVDD/VGH/VGL)
- Environment:
- Operating Temperature: -20 ~ 60 °C
- Storage Temperature: -30 ~ 70 °C
