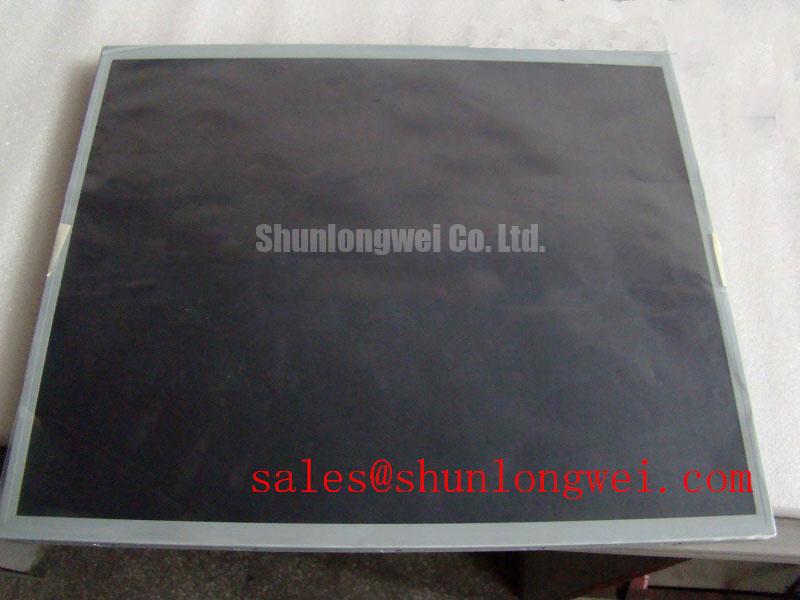

CPT CLAA170EA10 LCD Display

Manufacturer CPT

Model Name CLAA170EA10  Compatible Model 1 Compatible

Screen Size 17.0 inchScreen TypeLCM,   a-Si TFT-LCD

Pixel Number 1280(RGB)×1024   (SXGA)  96PPI

Arrangement RGB Vertical Stripe

Active Area(mm) 337.92 × 270.336 (H×V)

Outline(mm)358.5 × 296.5 × 17.5 (H×V×D)

Bezel Area(mm) 341.6 × 274.0 (H×V)

Treatment Antiglare

Luminance 250 cd/m² (Typ.)

Contrast Ratio 1000 : 1 (Typ.) (TM)

Viewing Angle 85/85/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

Response 5 (Typ.)(Tr+Td) ms

Good View at 6 o'clock

Work Mode TN, Normally White, Transmissive

Color Depth 16.7M   72% NTSC

Backlight 2 pcs CCFL , 50K hours , No Driver

Mass 1.90±0.10Kgs

Used for Desktop Monitor

Refresh Rate 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touchscreen Without

Signal Type LVDS (2 ch, 8-bit) , 30 pins Connector

Voltage Supply 5.0V (Typ.)

Max. Ratings Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
