Comparison of NEC NL6448AC33-18 and NL6448AC30-10 LCD Displays

What These Components Are and Their Industry Significance

The NEC NL6448AC33-18 and NL6448AC30-10 are industrial-grade 10.4-inch Video Graphics Array (VGA) active-matrix color Thin-Film Transistor Liquid Crystal Display (TFT-LCD) modules. Designed specifically for mission-critical visual interfaces, these displays have served as the visualization backbone across factory automation systems, computerized numerical control (CNC) machine tools, automated test equipment (ATE), process control terminals, and diagnostic medical equipment for decades. In industrial display engineering, the 10.4-inch 640 × 480 pixel format represents an industry-standard physical aspect ratio (4:3) and dimensional footprint that defined human-machine interface (HMI) design paradigms throughout the late 1990s and 2000s.

Understanding the architecture and operational distinctions of the NL6448AC33-18 and NL6448AC30-10 is essential for maintenance engineers, systems integrators, and retrofit technicians. Unlike commercial-grade desktop monitors or consumer tablet screens, industrial LCDs operate under harsh environmental conditions characterized by wide ambient temperature swings, high mechanical vibration, continuous 24/7 duty cycles, and severe electromagnetic interference (EMI). These legacy panels utilize parallel Transistor-Transistor Logic (TTL) / CMOS digital interfaces to communicate directly with display controller field-programmable gate arrays (FPGAs), graphic processing chips, or single-board computer buses without the protocol overhead of modern serial packet architectures.

As original equipment manufacturers (OEMs) face component obsolescence, facilities maintaining multi-million-dollar capital assets—such as robotic welding cells, precision injection molding machinery, and aerospace testing consoles—frequently encounter situations where a defective NL6448AC30-10 or NL6448AC33-18 must be repaired, replaced, or cross-referenced. Selecting the wrong panel revision or overlooking subtle variations in logic voltage levels (3.3V versus 5.0V), horizontal/vertical timing envelopes, or backlight inverter drive characteristics can lead to CMOS latch-up, permanent driver integrated circuit (IC) destruction, severe image flickering, or unreadable video artifacts. Applying rigorous Liquid Crystal Display Technology principles ensures legacy industrial machinery continues operating reliably without requiring complete, cost-prohibitive control system redesigns.

Working Principle and Physical Structure

To evaluate the functional characteristics of the NL6448AC33-18 and NL6448AC30-10, one must analyze the electro-optical structure of an active-matrix Thin-Film Transistor Liquid-Crystal Display (TFT LCD). The panel operates as a light-modulating spatial filter situated between an optical backlight assembly and the viewer. The core structure comprises a sandwich of two glass substrates enclosing a calibrated layer of nematic liquid crystal material, bounded on the exterior surfaces by crossed linear optical polarizers.

The rear glass substrate contains an array of thin-film field-effect transistors fabricated from amorphous silicon (a-Si). Each pixel is subdivided into three sub-pixels corresponding to Red, Green, and Blue (RGB) color filter stripes deposited on the front glass substrate. In a 640 × 480 array, there are precisely 1,920 column lines and 480 row (gate) lines, establishing a total of 921,600 discrete TFT-switched capacitive storage cells. When the gate driver IC activates a horizontal row line with a gate-on voltage (V_GON), the conductive channels of all TFTs along that row open. The source driver ICs then apply precise analog voltages corresponding to the grayscale values to each column line, charging the liquid crystal capacitance (C_LC) and parallel storage capacitance (C_S).

The electric field established between the individual pixel electrode on the TFT substrate and the common continuous transparent electrode (V_COM) on the color filter substrate forces the rod-like nematic liquid crystal molecules to untwist. In the standard Twisted Nematic (TN) normally-white mode, the unenergized liquid crystal structure rotates polarized light passing from the rear polarizer by 90°, allowing it to pass unimpeded through the front crossed polarizer (maximum transmission, white state). When an electric field is applied, the molecules reorient parallel to the field, eliminating optical rotation and blocking light transmission (black state). Varying the voltage modulates intermediate optical transmission to generate up to 64 distinct shades per color channel on a 6-bit digital architecture, yielding 262,144 addressable colors.

Optical illumination is delivered by a Cold Cathode Fluorescent Lamp (CCFL) edge-lit backlight system integrated into the rear optical cavity. Light emitted by the high-voltage CCFL tubes enters an optical polymethyl methacrylate (PMMA) light guide plate (LGP), which utilizes micro-etched extraction dots, bottom reflector sheets, and top prism/diffuser films to transform a linear line light source into a uniform, collimated planar illumination field across the entire active screen surface.

Key Features, Advantages, and Technology Comparison

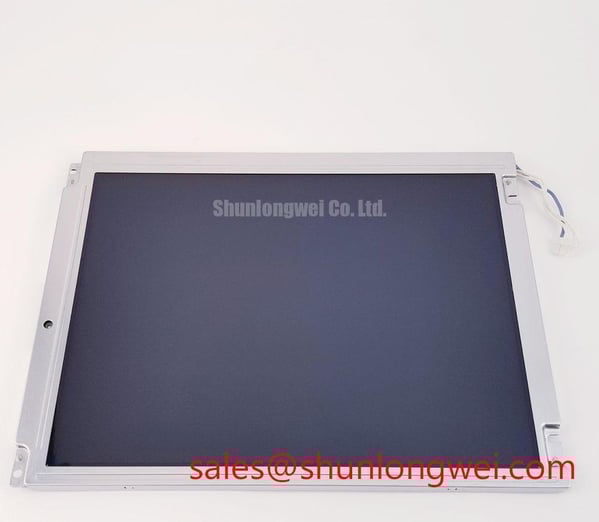

While both the NEC NL6448AC33-18 and NL6448AC30-10 share the common 10.4-inch mechanical form factor and 640 × 480 native VGA resolution, they reflect evolutionary refinements in driver semiconductor technology, logic rail standardization, and optical efficiency. The primary differences lie in the operating logic voltage (V_DD), maximum screen luminance, interface connector pin assignment, and dynamic response speed.

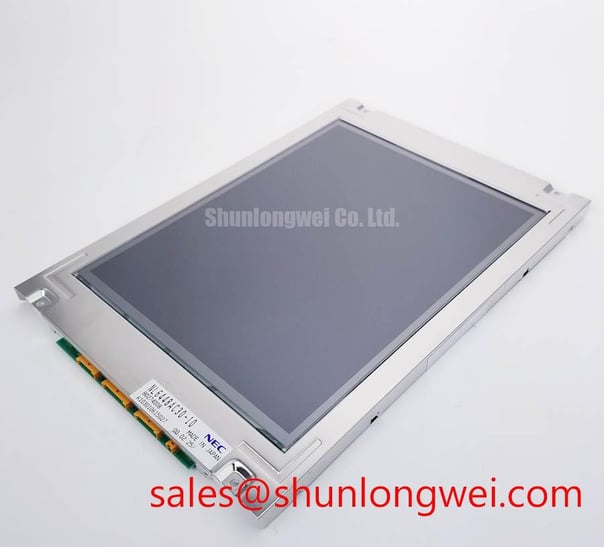

The NL6448AC30-10 represents an earlier generation characterized by a strict 5.0V logic supply rail (V_DD = 5.0V ± 0.5V) and a standard dual-tube CCFL backlight assembly producing a nominal luminance of approximately 200 to 250 cd/m². Its timing controller (TCON) relies on standard CMOS/TTL 5V input signal levels, requiring host graphics boards to maintain robust drive currents across parallel ribbon cables. In contrast, the NL6448AC33-18 was introduced to accommodate lower-power industrial systems, incorporating a flexible logic architecture supporting 3.3V or 5.0V operational modes, enhanced horizontal/vertical viewing angles, reduced power consumption on the internal row/column drivers, and optimized anti-glare (AG) surface treatment to reduce ambient light reflections in bright factory environments.

Modern engineering retrofits also evaluate newer LED-backlit direct-descendant panels, such as the NL6448BC26-27, or high-durability displays like the TX20D208VM0BAA when migrating away from legacy CCFL infrastructure. The comprehensive engineering comparison below details the technical attributes of these panels.

Real-World Applications and Operating Precautions

The NL6448AC33-18 and NL6448AC30-10 displays are embedded across a wide variety of mission-critical systems where equipment lifespan spans 15 to 30 years. Typical installations include CNC machining centers (such as Fanuc, Mazak, and Siemens controller panels), injection molding human-machine interfaces, blood chemistry analyzers, marine navigation radar consoles, and automated semiconductor packaging lines. In certain high-reliability applications, operators migrating from legacy flat-panel displays, including electroluminescent types like the EL552-256-Q1, transition to these NEC TFT modules due to their standardized VGA interface and full-color rendering capabilities.

When operating, maintaining, or retrofitting these displays, engineers must strictly observe several critical engineering precautions to avoid field failures:

• Strict Power-On / Power-Off Sequencing: The timing controller and driver ICs utilize CMOS architecture susceptible to catastrophic latch-up if digital input signals (CLK, HSYNC, VSYNC, DE, and Data 0-5) are driven before the logic supply rail (V_DD) reaches stable operational levels. The supply voltage V_DD must ramp smoothly within a defined window of 0.5 ms < t₁ < 10 ms before active high-level logic signals are asserted. During power-down, all data signals must return to low logic levels before V_DD falls below 2.7V.
• High-Voltage Inverter Handling: The CCFL backlight tubes require an alternating ignition striking voltage typically exceeding 1,000 V_rms (at 40 kHz to 70 kHz) and a continuous operational sustaining voltage between 400 V_rms and 600 V_rms. Maintenance personnel must never probe CCFL outputs with standard handheld multimeters. High-voltage silicone-insulated wiring harnesses must be routed away from sharp metal chassis edges to prevent dielectric breakdown and arc-over faults.
• Digital Signal Integrity and Ground Balancing: Because parallel 18-bit TTL lines carry rapid digital transitions at 25.175 MHz, excessive ribbon cable length or improper ground referencing will induce transmission line reflections, cross-talk, and ringing. Characteristic single-ended trace impedance should be maintained near 50 Ω, with solid ground returns interspersed between clock and synchronization lines.
• Thermal Dissipation and Ambient Operating Limits: The operational temperature window extends from 0 °C to +50 °C (or -10 °C to +65 °C for extended industrial grades). Operating the CCFL tubes at sub-zero temperatures drastically increases the required ignition striking voltage, causing striking failures or severe mercury condensation that degrades optical luminance. Ensure forced-air cooling vents are free from oil mist and metallic dust accumulation.
• Mechanical Bezel Clamping: Excessive or non-uniform torque applied to the perimeter mounting screws can warp the steel frame, exerting localized mechanical stress on the bonded Tape Carrier Packages (TCP) / Chip-on-Glass (COG) driver IC connections, resulting in permanent vertical line defects. Tightening torque should be uniformly calibrated to 0.29 to 0.39 N·m.

Engineering Selection Guidelines and Field Diagnostics

When retrofitting an obsolete NL6448AC30-10 with an NL6448AC33-18 (or vice versa), engineers must verify electrical and mechanical backward compatibility. If substituting an NL6448AC30-10 into a system configured for the NL6448AC33-18, confirm that the host graphics card can supply the required 5.0V logic rail without overloading low-current 3.3V regulators. Conversely, when installing an NL6448AC33-18 into a 5.0V native host system, ensure that the panel’s internal voltage regulator accommodates 5.0V V_DD inputs, or introduce inline bidirectional logic level translators if the specific board iteration operates strictly at 3.3V CMOS thresholds.

When diagnosing display anomalies in the field, technicians should execute a systematic electrical and optical verification routine using a digital multimeter (DMM) and a 100 MHz dual-channel digital storage oscilloscope (DSO). The diagnostic matrix below outlines common failure modes, physical root causes, and definitive corrective actions.

By systematically validating interface logic voltage rails, enforcing proper power sequencing, and maintaining clean clock distribution, maintenance engineers can ensure long-term, fail-safe operation for both NL6448AC33-18 and NL6448AC30-10 industrial display installations.
