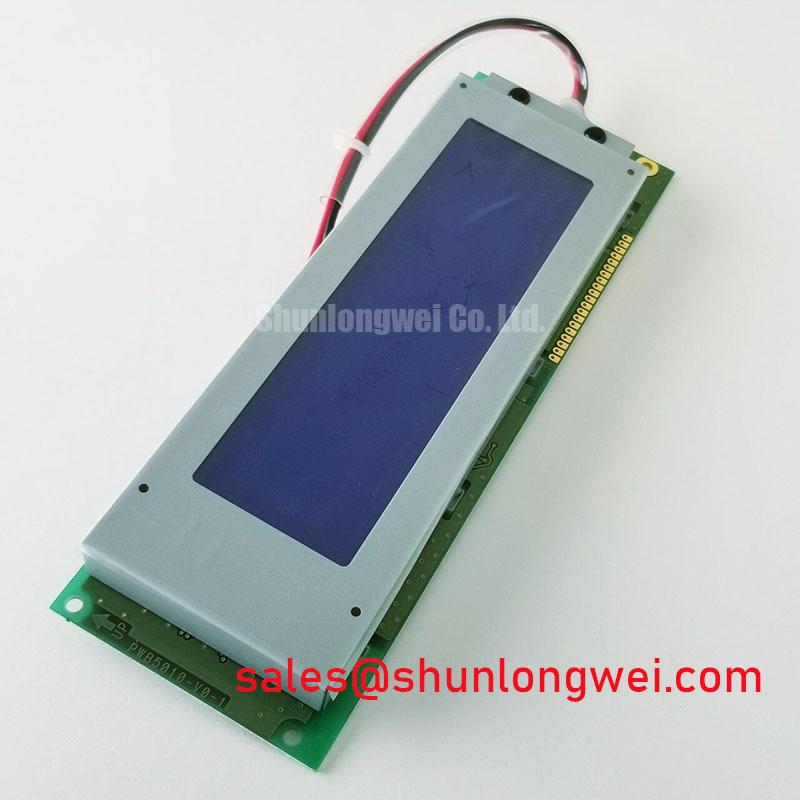

OPTREX DMF5010NBU-FW LCD Display

Brand OPTREX

Model DMF5010NBU-FW

Diagonal Size 5.2 inch

Type STN-LCD, LCM

Pixel Format 240×64  47PPI

Configuration Rectangle

Active Area 127.2(H)×33.9(V) mm

Outline Dim 200(H)×66(V) mm

Bezel Area 132.0(H)×39.0(V) mm

Luminance400 cd/m² (Min.)Contrast Ratio7:1 (Typ.) (TM)

View Direction 12 o'clock

Response Time 70/260 (Typ.)(Tr/Td)

Viewing Angle 50/50/50/35 (Typ.)(CR≥2) Left / Right / Up / Down

Operating Mode STN, Blue mode, Transmissive

Support Color Monochrome

Light Source CCFL  [1 pcs] , 15K hours , W/O Driver

Weight 250g (Max.)

Designed For Industrial

Frame Rate 70Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Panel Without

Interface Type 8-bit parallel , 20 pins

Power Supply 5.0V (Typ.)

Environment Operating Temperature: 10 ~ 40 °C ; Storage Temperature: -20 ~ 60 °C
