Sell EV121WXM-N10, #BOE #EV121WXM-N10 Stock, EV121WXM-N10 BOE 12.1 inch LCM 1280×800 400 1200:1 85/85/85/85 16.7M WLED LVDS, #LCD_Display, #LCD, #EV121WXM_N10
Email: sales@shunlongwei.com
URL:
https://www.slw-ele.com/ev121wxm-n10.html

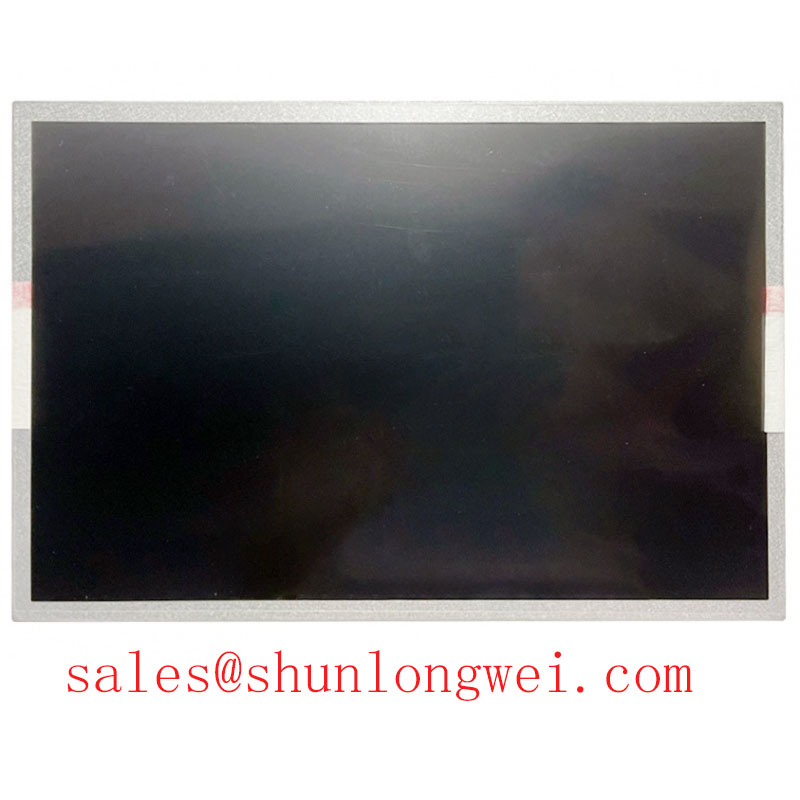

The specifications for the BOE display with the model P/NEV121WXM-N10:
- General Information:
- Brand: BOE
- Model: P/NEV121WXM-N10
- Diagonal Size: 12.1 inch
- Panel Type: a-Si TFT-LCD, LCM
- Resolution: 1280(RGB)×800, WXGA, 124PPI
- Pixel Format: RGB Vertical Stripe
- Active Area: 261.12(W)×163.2(H) mm
- Bezel Opening: 264.12(W)×166.2(H) mm
- Outline Dimensions: 277.7(W)×180.6(H) mm
- Display Characteristics:
- Luminance: 400 cd/m² (Typ.)
- View Direction: Symmetry
- Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down
- Support Color: 16.7M, 48% NTSC
- Weight: 556g (Typ.)
- Frame Rate: 60Hz
- Treatment and Contrast Ratio:
- Treatment: Not specified
- Contrast Ratio: 1200:1 (Typ.) (TM)
- Response Time and Operating Mode:
- Response Time: 25 (Typ.)(Tr+Td) ms
- Operating Mode: ADS, Normally Black, Transmissive
- Light Source: WLED, 50K hours, With LED Driver
- Designed For and Touch Panel:
- Designed For: Industrial Medical Imaging
- Touch Panel: Without
- Frame Rate and Interface Type:
- Frame Rate: 60Hz
- Interface Type: LVDS (1 ch, 8-bit) 20 pins Connector
- Power Supply and Environmental Conditions:
- Power Supply: 3.3V (Typ.)
- Operating Temperature: -20 ~ 70 °C
- Storage Temperature: -30 ~ 80 °C
