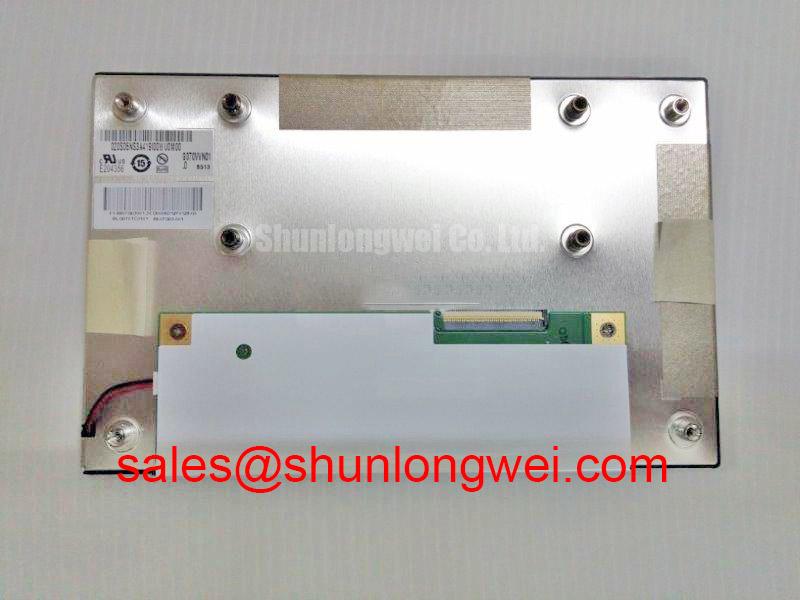

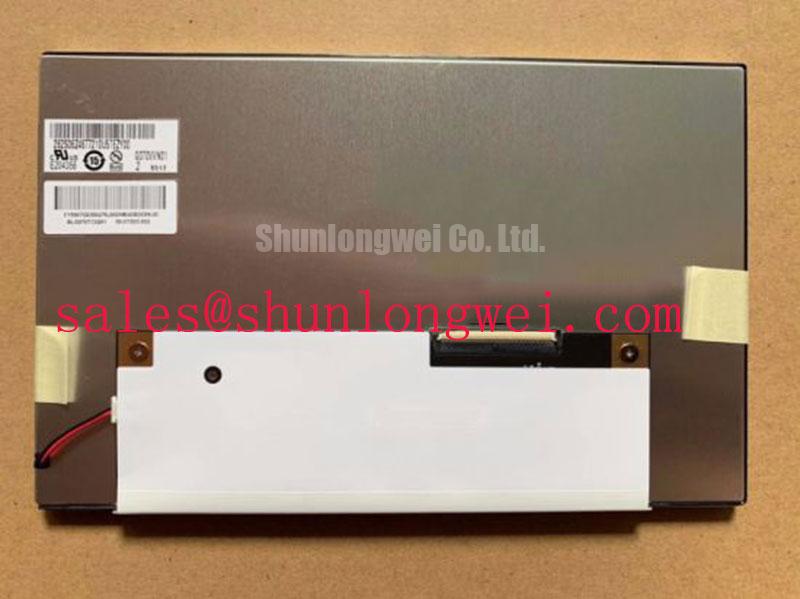

AUO G070VVN01.0 LCD Display

Panel Brand AUO

Panel Model G070VVN01.0

Panel Size 7.0 inch

Panel Type a-Si TFT-LCD , LCM

Resolution 800(RGB)×480, WVGA, 133PPI

Pixel Format RGB Vertical Stripe

Pixel Format a-Si TFT-LCD , LCM

Display Area 152.4(W)×91.44(H) mm

Surface Antiglare, Hard coating (3H)

Contrast Ratio 1500:1 (Typ.) (TM)

Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode AMVA, Normally Black, Transmissive

Best View on Symmetry

Response Time 10/25 (Typ.)(Tr/Td)

Display Colors 262K/16.2M   50% NTSC

Lamp Type 7S2P WLED , 30K hours , Without Driver

Frequency 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Weight TBD

Touch Screen Without

Signal Interface Parallel RGB (1 ch, 6/8-bit) , 50 pins Connector

Input Voltage 3.3V (Typ.)

Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
