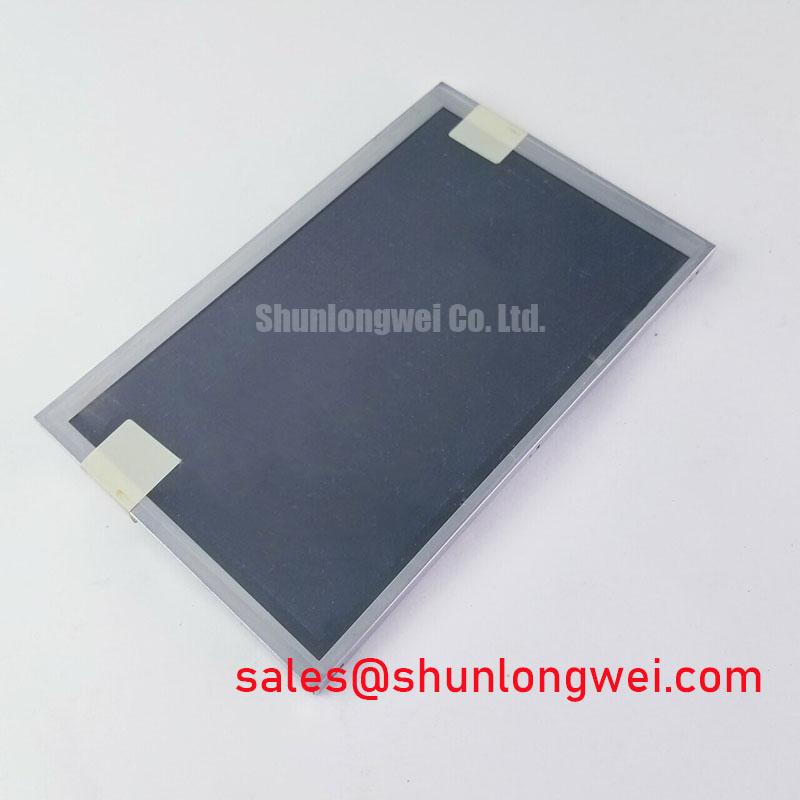

LG Display LB070WV8-SL02 LCD Display

Panel Brand LG Display

Panel Model LB070WV8-SL02  Compatible Model 1 Compatible

Panel Size 7.0 inch

Panel Type a-Si TFT-LCD, LCM

Resolution 800(RGB)×480, WVGA, 133PPI

Pixel Format RGB Vertical Stripe

Display Area 152.4(W)×91.44(H) mm

Bezel Opening 155.2(W)×94.2(H) mm

Outline Size 170(W)×106.3(H) ×10.7(D) mm

Surface Antiglare

Brightness 450 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Min.)(CR≥10) Left / Right / Up / Down

Display Mode IPS, Normally Black, Transmissive

Best View on Symmetry

Response Time 15/10 (Typ.)(Tr/Td)

Display Colors 16.7M   65% NTSC

Lamp Type WLED , 50K hours , With LED Driver

Frequency 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Screen Without

Panel Weight 220g (Max.)

Application Industrial Automotive Display Gaming

Signal Interface LVDS (1 ch, 8-bit) , 30 pins Connector

Input Voltage 3.3V (Typ.)

Environment Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 85 °C
