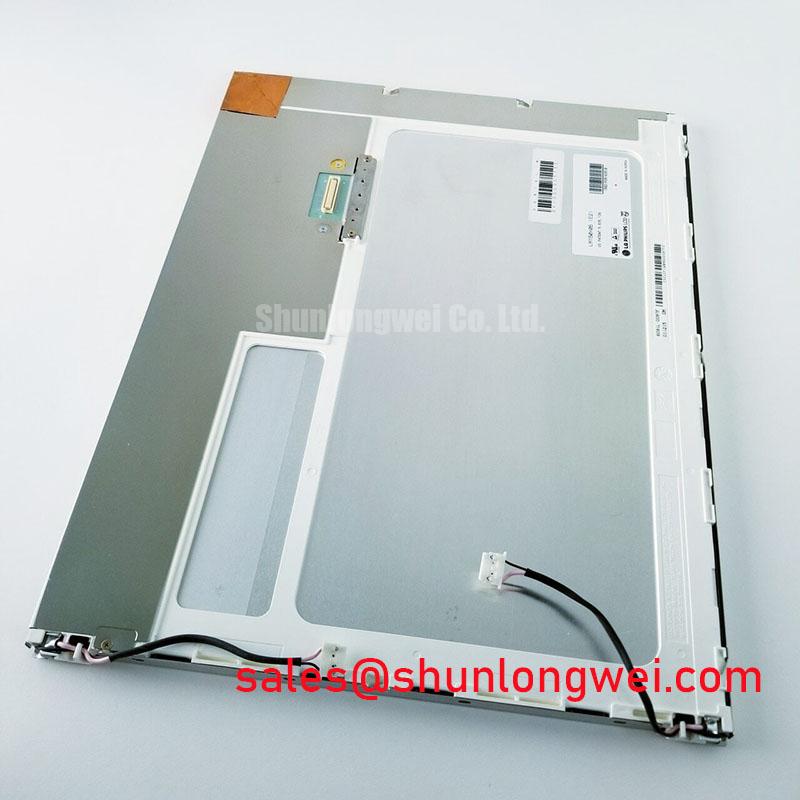

LG Display LM150X05-E3 LCD Display

Brand LG.Philips LCD

Model LM150X05-E3

Diagonal Size 15.0 inch

Type a-Si TFT-LCD, LCM

Pixel Format 1024(RGB)×768  [XGA]  85PPI

Configuration RGB Vertical Stripe

Active Area 304.128(H)×228.096(V) mm

Outline Dim 331.3(H)×257.9(V) ×11.5(D) mm

Bezel Area 308.2(H)×232.2(V) mm

Treatment Antiglare, Hard coating (3H)

Luminance 250 cd/m² (Typ.)

Contrast Ratio 300:1 (Typ.) (TM)

Response Time 10/20 (Typ.)(Tr/Td)

Viewing Angle 60/60/45/45 (Min.)(CR≥10) Left / Right / Up / Down

Operating Mode TN, Normally White, Transmissive

Support Color 262K   60%

Light Source CCFL  [2 pcs] , 30K hours , W/O Driver

Weight 1.05Kgs (Typ.)

Designed For Desktop Monitor

Frame Rate 60Hz

Touch Panel Without

Interface Type TTL (2 ch, 6-bit) , 60 pins Connector

Power Supply 5.0V (Typ.)(VDD)

Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
