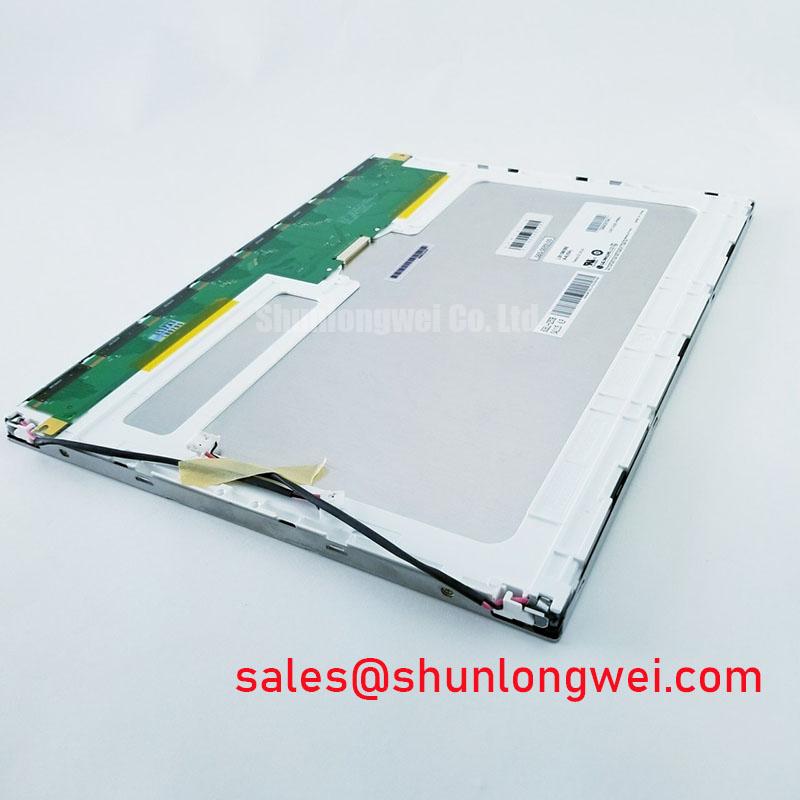

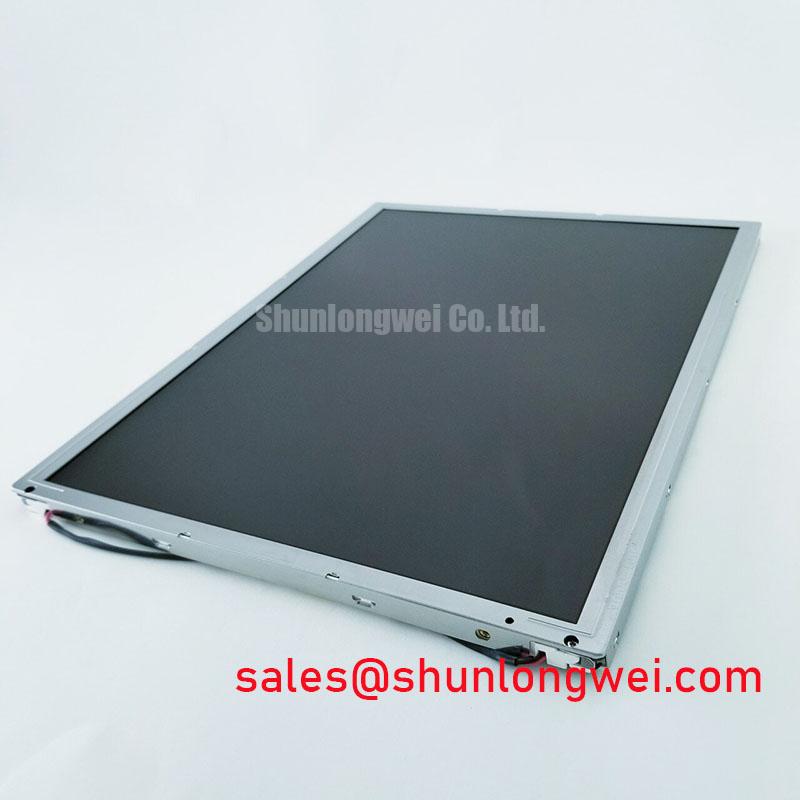

LG Display LM150X08-A4K1 LCD Display

Brand LG.Philips LCD

Model LM150X08-A4K1

Diagonal Size 15.0 inch

Type a-Si TFT-LCD, LCM

Pixel Format 1024(RGB)×768  [XGA]  85PPI

Configuration RGB Vertical Stripe

Active Area 304.128(H)×228.096(V) mm

Outline Dim 326.5(H)×253.5(V) ×11.7(D) mm

Bezel Area 307.4(H)×231.3(V) mm

Treatment Antiglare (Haze 13%), Hard coating (3H)

Luminance 250 cd/m² (Typ.)

Contrast Ratio 400:1 (Typ.) (TM)

View Direction 6 o'clock

Response Time 5/11 (Typ.)(Tr/Td)

Viewing Angle 60/60/45/55 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode TN, Normally White, Transmissive

Support Color 16.2M   64% NTSC

Light Source CCFL  [2 pcs] , 40K hours , W/O Driver

Weight 1.00Kgs (Typ.)

Designed For Desktop Monitor

Frame Rate 60Hz

Touch Panel Without

Interface Type LVDS (1 ch, 8-bit) , 20 pins Connector

Power Supply 3.3V (Typ.)

Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
