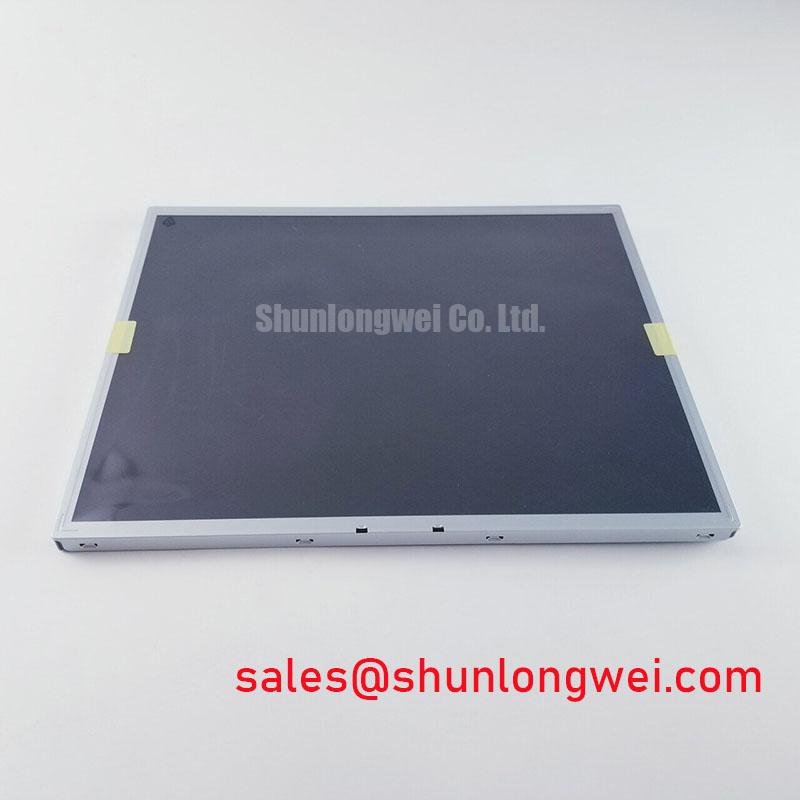

LG Display LM170E03-TLG6 LCD Display

Manufacturer LG Display

Model Name LM170E03-TLG6  Compatible Model 3 Compatible

Screen Size 17.0 inch

Screen Type LCM ,   a-Si TFT-LCD

Pixel Number 1280(RGB)×1024   (SXGA)  96PPI

Arrangement RGB Vertical Stripe

Active Area(mm) 337.92 × 270.336 (H×V)

Outline(mm) 358.5 × 296.5 × 16.5 (H×V×D)

Bezel Area(mm) 341.6 × 274.0 (H×V)

Treatment Antiglare, Hard coating (3H)

Luminance 300 cd/m² (Typ.)

Contrast Ratio 800 : 1 (Typ.) (TM)

Viewing Angle 80/80/75/85 (Typ.)(CR≥10) Left / Right / Up / Down

Response 1.2/3.8 (Typ.)(Tr/Td) ms

Good View at 6 o'clock

Work Mode TN, Normally White, Transmissive

Color Depth 16.7M   72% NTSC

Backlight 4 pcs CCFL , 50K hours , No Driver

Mass 1.60/1.80Kgs (Typ./Max.)

Used for Desktop Monitor

Refresh Rate 60Hz

Touchscreen Without

Signal Type LVDS (2 ch, 8-bit) , 30 pins Connector

Voltage Supply 5.0V (Typ.)

Max. Ratings Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
