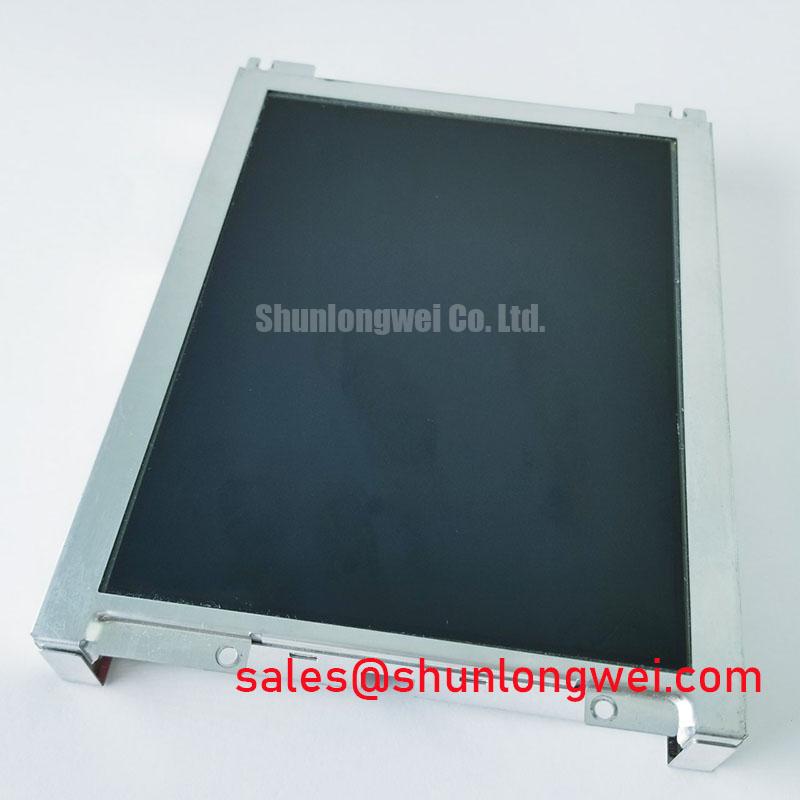

LG LM201U05-SLA3 LCD Display

Brand LG.Philips LCD

Model P/N LM201U05-SLA3

Diagonal Size 20.1 inch

Panel Type a-Si TFT-LCD, LCM

Resolution 1600(RGB)×1200, UXGA 99PPI

Pixel Format RGB Vertical Stripe

Active Area 408(W)×306(H) mm

Bezel Opening 413.0(W)×311.0(H) mm

Outline Dim. 432(H)×331.5(V) ×25.5(D) mm

Treatment Antiglare (Haze 25%), Hard coating (3H)

Luminance 300 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)

View Direction Symmetry

Response Time 7/9 (Typ.)(Tr/Td), 8 (Typ.)(G to G)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode IPS, Normally Black, Transmissive

IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich

VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

Support Color 16.7M 72% NTSC

Light Source CCFL [6 pcs] , 45K hours , W/O Driver

Weight 3.20Kgs (Typ.)

Designed For Desktop Monitor

Frame Rate 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Panel Without

Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector

Power Supply 18.0V (Typ.)

Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
