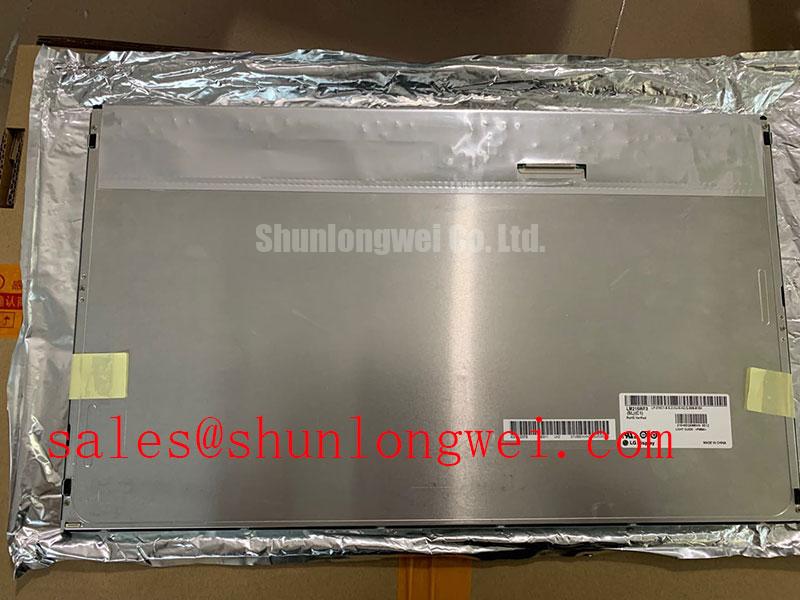

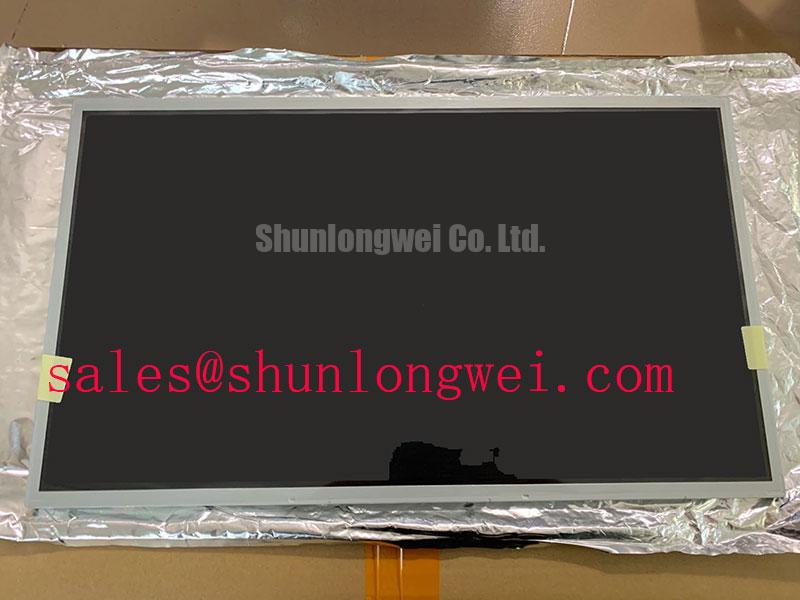

LG LM215WF3-SJJ5 LCD Display

Manufacturer LG Display

Model Name LM215WF3-SJJ5

Screen Size 21.5 inch

Screen Type CELL,   a-Si TFT-LCD

Pixel Number 1920(RGB)×1080   (FHD)  102PPI

Arrangement RGB Vertical Stripe

Active Area(mm) 476.064 × 267.786 (H×V)

Outline(mm) 493.06 × 284.786 × 1.35 (H×V×D)

Treatment Antiglare, Hard coating (3H)

Luminance 0 cd/m²

Contrast Ratio 1000 : 1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Response 14 (Typ.)(G to G) ms

Good View at Symmetry

Work Mode IPS, Normally Black, Transmissive

Glass Thickness 0.50+0.50 mm

It's Depth of CF Depth + Array Depth

CELL Depth = CF Depth + Array Depth + Polarizer DepthTransmissivity4.3% (Typ.)(with Polarizer)

Color Depth16.7M   72% NTSC

Backlight No B/L

Mass 420/445g (Typ./Max.)

Used for Desktop Monitor

Refresh Rate 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touchscreen Without

Driver IC list Built-in COF 4 source chips

Signal Type LVDS (2 ch, 8-bit) , Connector 30 pins

Voltage Supply 5.0V (Typ.)

Max. Ratings Storage Temp: -20 ~ 60 °C Operating Temp: 0 ~ 50 °C
