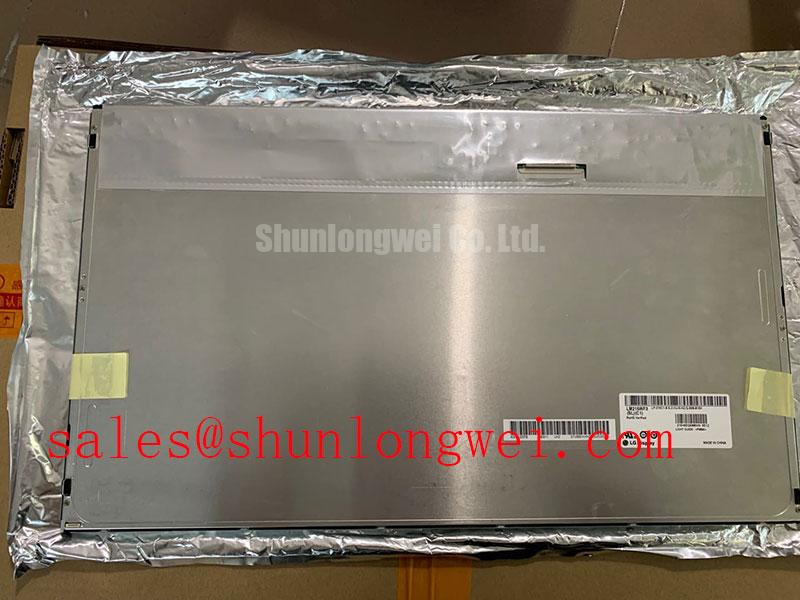

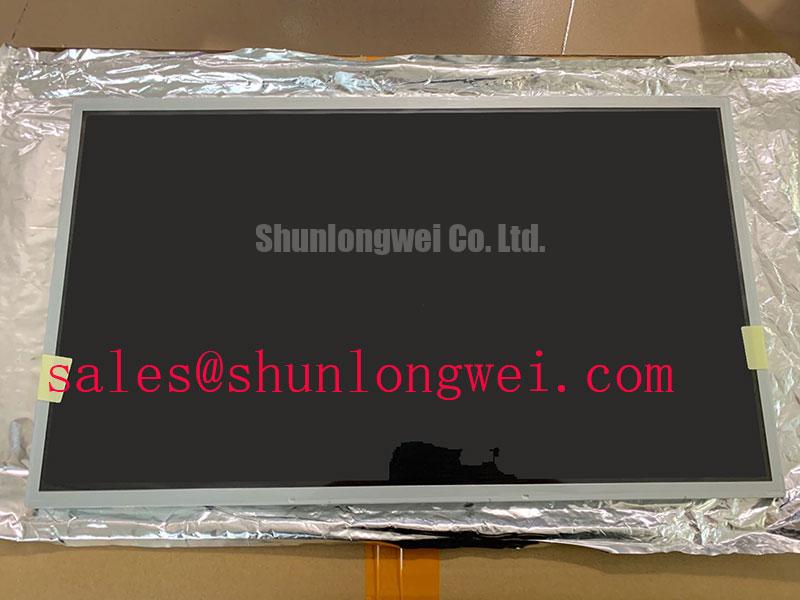

LG Display LM215WF3-SLE1 LCD Display

Manufacturer LG Display

Model Name LM215WF3-SLE1

Screen Size 21.5 inch

Screen Type LCM ,   a-Si TFT-LCD

Pixel Number 1920(RGB)×1080   (FHD)  102PPI

Arrangement RGB Vertical Stripe

Active Area(mm) 476.064 × 267.786 (H×V)

Outline(mm) 497.6 × 292.2 × 11 (H×V×D)

Bezel Area(mm) 479.8 × 271.3 (H×V)

Treatment Antiglare, Hard coating (3H)

Luminance 250 cd/m² (Typ.)

Contrast Ratio 1000 : 1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Response 14 (Typ.)(G to G) ms

Good View at Symmetry Work Mode IPS, Normally Black, Transmissive

IPS Family: AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich

VA Family: ASV, HVA, MVA, PVA, SVA, UV²A, VA

Color Depth 16.7M  Backlight 16S2P WLED , 30K hours , No Driver

Mass 1.88/1.98Kgs (Typ./Max.) Used for Desktop Monitor

Refresh Rate 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC

Circuit Touchscreen Without

Signal Type LVDS (2 ch, 8-bit) , 30 pins Connector

Voltage Supply 5.0V (Typ.)

Max. Ratings Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
