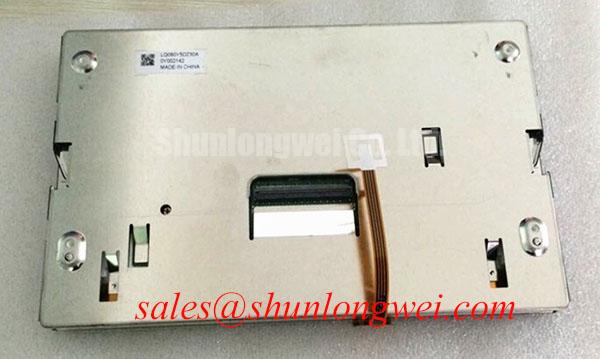

#Sharp, #LQ080Y5DZ03, #LCD_Display, #LCD, LQ080Y5DZ03 SHARP 8.0 inch Panel 800×480 2000:1 262K WLED TTL ; LQ080Y5DZ03
Panel Brand : Sharp
Panel Model : LQ080Y5DZ03
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 8.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : ASV, Normally Black, Transmissive
Active Area : 174×104.4 mm
Outline : 191.8×120×13.5 mm
Surface : Antiglare, Reflection 1.5% (Typ.)
Brightness : 640 cd/m² (Typ.)
Contrast Ratio : 2000:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 15/5 (Typ.)(Tr/Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : Parallel RGB (1 ch, 6-bit)
Input Voltage : 3.3V (Typ.)
LQ080Y5DZ03 inverter, LQ080Y5DZ03 power supply, LQ080Y5DZ03 electronic board, LQ080Y5DZ03 VGA board, LQ080Y5DZ03 touchscreen available.
