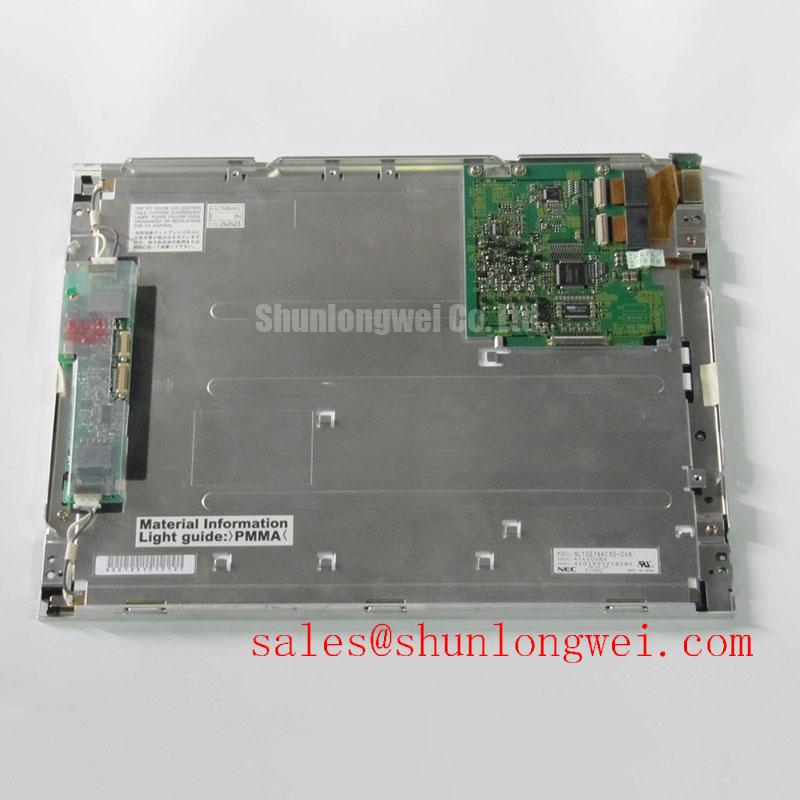

#NEC, #NL10276AC30_04R, #LCD_Display, #LCD, NL10276AC30-04R NEC 15inch LCM 1024×768 200 200:1 60/60/40/50 262K CCFL LVDS
Brand NEC
Model NL10276AC30-04R
Diagonal Size 15.0 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1024(RGB)×768 [XGA] 85PPI
Configuration RGB Vertical Stripe
Active Area 304.128(H)×228.096(V) mm
Outline Dim. 350(H)×265(V) ×20.5(D) mm
Bezel Area 308.8(H)×232.7(V) mm
Treatment Antireflection
Luminance 200 cd/m² (Typ.)
Contrast Ratio 200:1 (Typ.) (TM)
Response Time 15/40 (Typ.)(Tr/Td)
Viewing Angle 60/60/40/50 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color 262K 40% NTSC
Light Source CCFL [2 pcs] , With Inverter
Weight 1.35/1.50Kgs (Typ./Max.)
Designed For Desktop Monitor
Frame Rate 60HzTouch PanelWithout
Interface Type LVDS (1 ch, 6-bit) , 20 pins Connector
Power Supply 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C ; Vibration Level: 2.0G (19.6 m/s²)
