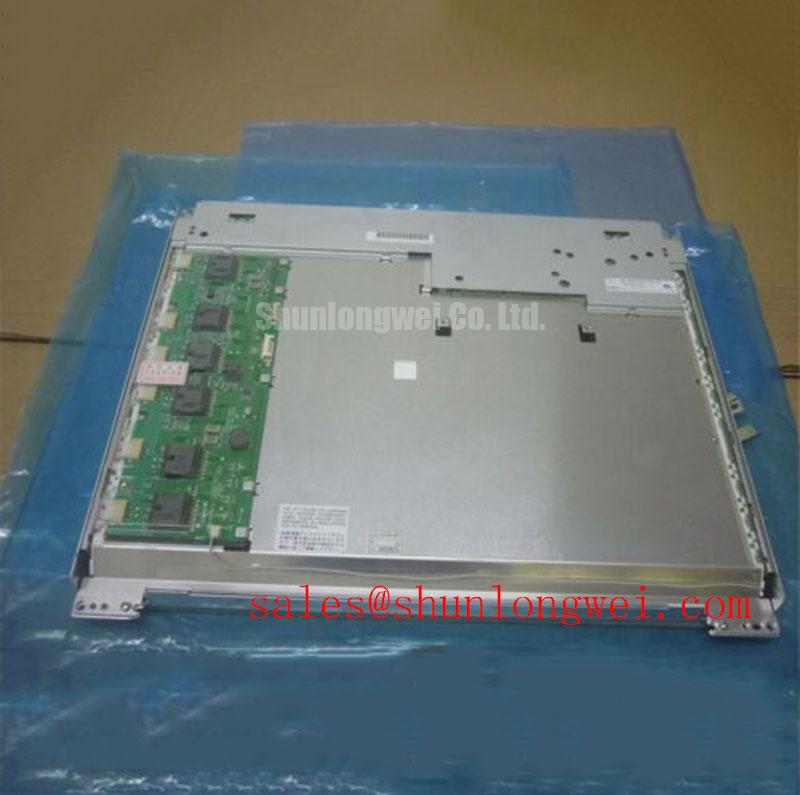

NEC NL128102AC28-07 LCD Display

Panel Brand NEC

Panel Model NL128102AC28-07

Panel Size 18.1 inch

Panel Typea-Si TFT-LCD, LCM

Resolution 1280(RGB)×1024, SXGA, 90PPI

Pixel Format RGB Vertical Stripe

Display Area 359.04(W)×287.232(H) mm

Bezel Opening 364.0(W)×292.2(H) mm

Outline Size 389(W)×317.2(H) ×31.3(D) mm

Surface Hard coating (2H), Antireflection

Brightness 240 cd/m² (Typ.)

Contrast Ratio 300:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode A-SFT, Normally Black, Transmissive

Best View on Symmetry

Response Time 15/14 (Typ.)(Tr+Td)

Display Colors 16.7M   60% NTSC

Lamp Type 12 pcs CCFL , With Inverter

Frequency 60Hz

Touch Screen Without

Panel Weight 1.65/1.75Kgs (Typ./Max.)ApplicationDesktop Monitor Industrial

Signal Interface LVDS (2 ch, 8-bit) , 50 pins Connector

Input Voltage 12.0V (Typ.)

Environment Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -20 ~ 60 °C
