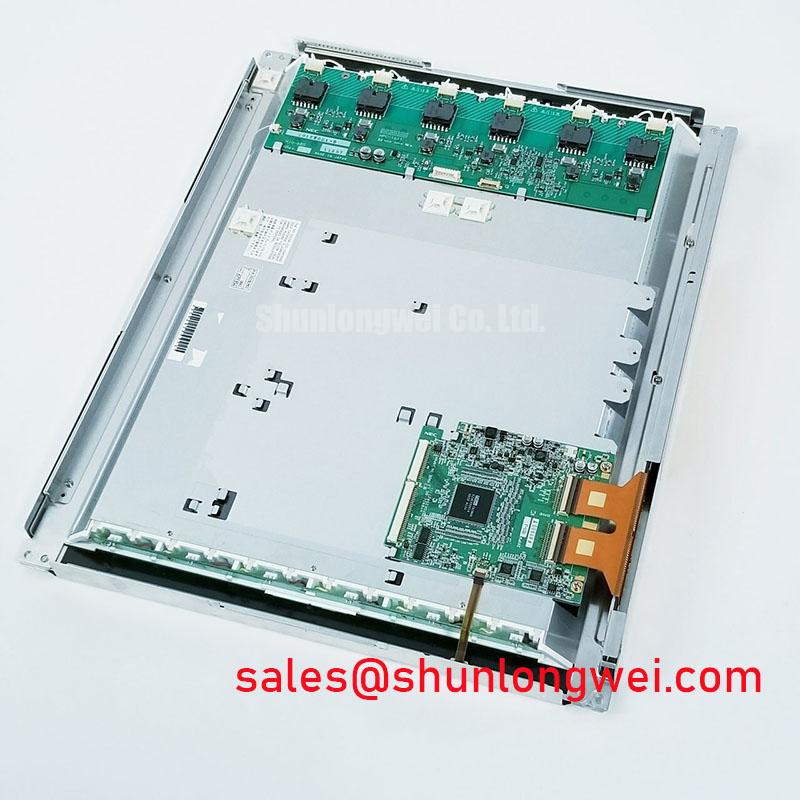

NEC NL128102AC31-01B LCD Display

Manufacturer NEC

Model Name NL128102AC31-01B

Screen Size 20.1 inch

Screen Type LCM ,   a-Si TFT-LCD

Pixel Number 1280(RGB)×1024   (SXGA)  81PPI

Arrangement RGB Vertical Stripe

Active Area(mm) 399.36 × 319.488 (H×V)

Outline(mm) 470.5 × 382 (H×V×D)

Bezel Area(mm) 404.8 × 325.0 (H×V)

Luminance 150 cd/m² (Typ.)

Contrast Ratio 220 : 1 (Typ.) (TM)

Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

Response 58 (Typ.)(Tr) ms

Good View at Symmetry

Work Mode SFT, Normally Black, Transmissive

Color Depth Full color   40% NTSC

Backlight 10 pcs CCFL , With Inverter

Mass 3.56/3.60Kgs (Typ./Max.)

Used for Desktop Monitor Industrial

Touchscreen Without

Signal Type Analog RGB Connector

Voltage Supply 12.0V (Typ.)

Max. Ratings Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
