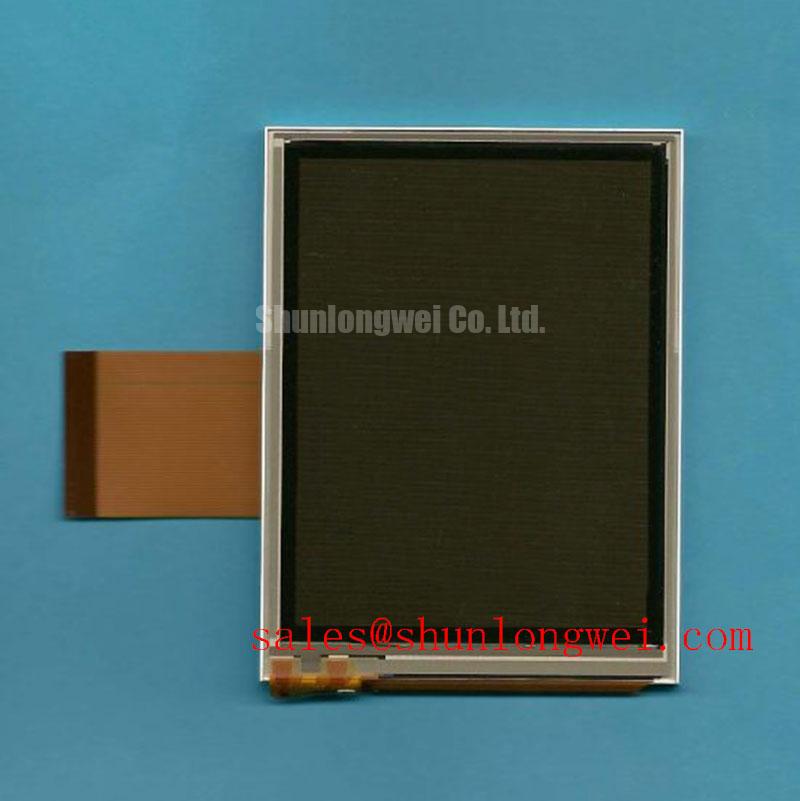

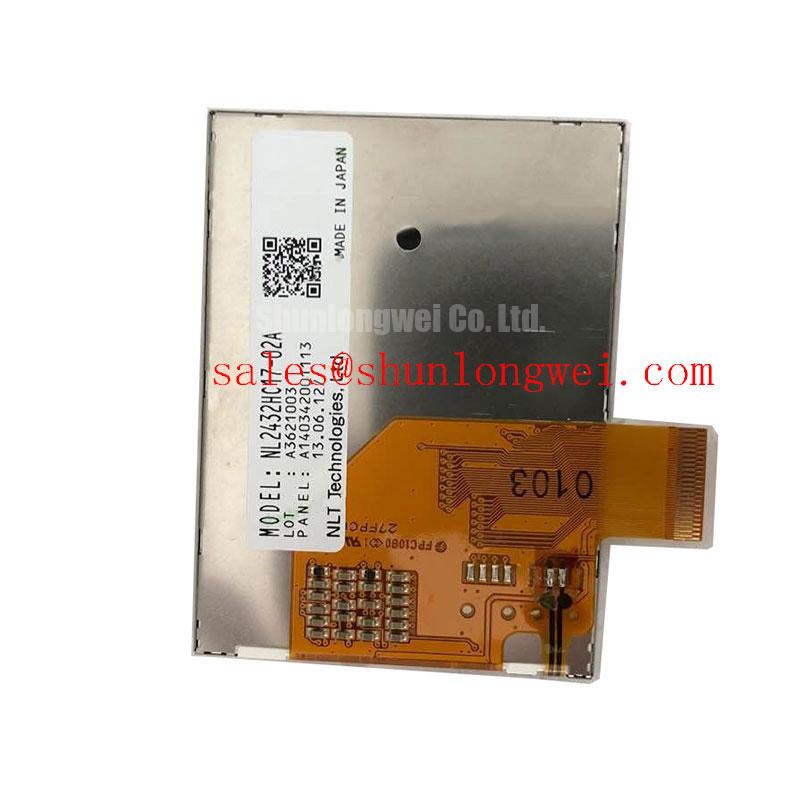

NEC NL2432HC17-02A LCD Display

Panel Brand NEC

Panel Model NL2432HC17-02A

Panel Size 2.7 inch

Panel Type a-Si TFT-LCD, LCM

Resolution 240(RGB)×320, QVGA, 148PPI

Pixel Format RGB Vertical Stripe

Display Area 41.04(W)×54.72(H) mm

Outline Size 50.54(W)×68.62(H) mm

Surface Clear

Brightness 200 cd/m² (Typ.)

Contrast Ratio 400:1 (Typ.) (TM)

Viewing Angle 40/40/50/20 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode TN, Transmissive

Response Time 23 (Typ.)(Tr+Td)

Display Colors 262K

Lamp Type WLED

Panel Weight 23.0g (Typ.)ApplicationHandheld & PDA

Signal Interface CMOS (1 ch, 6-bit)

Input Voltage 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF)

Environment Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
