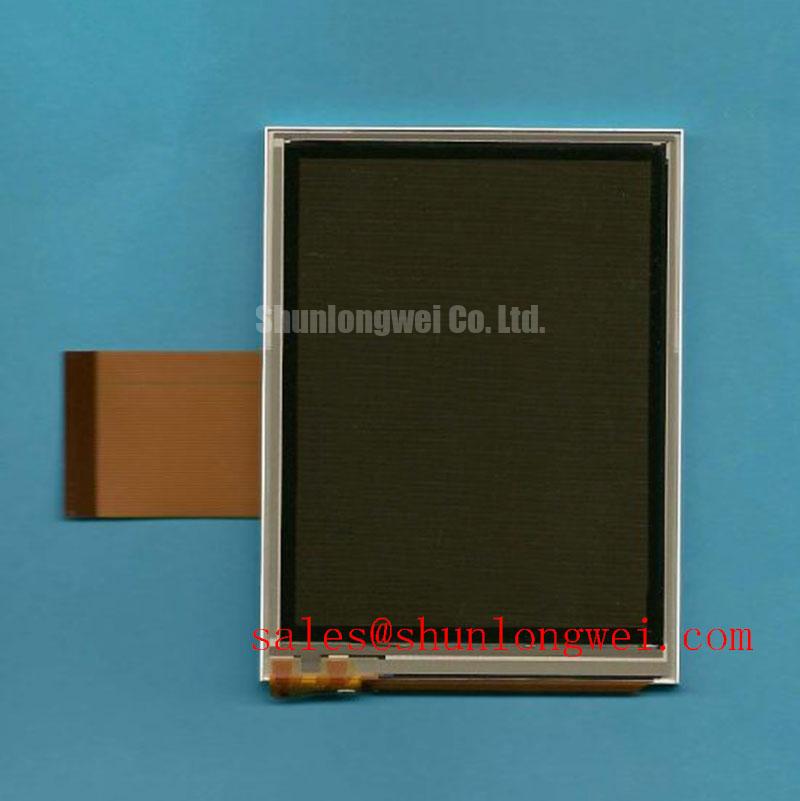

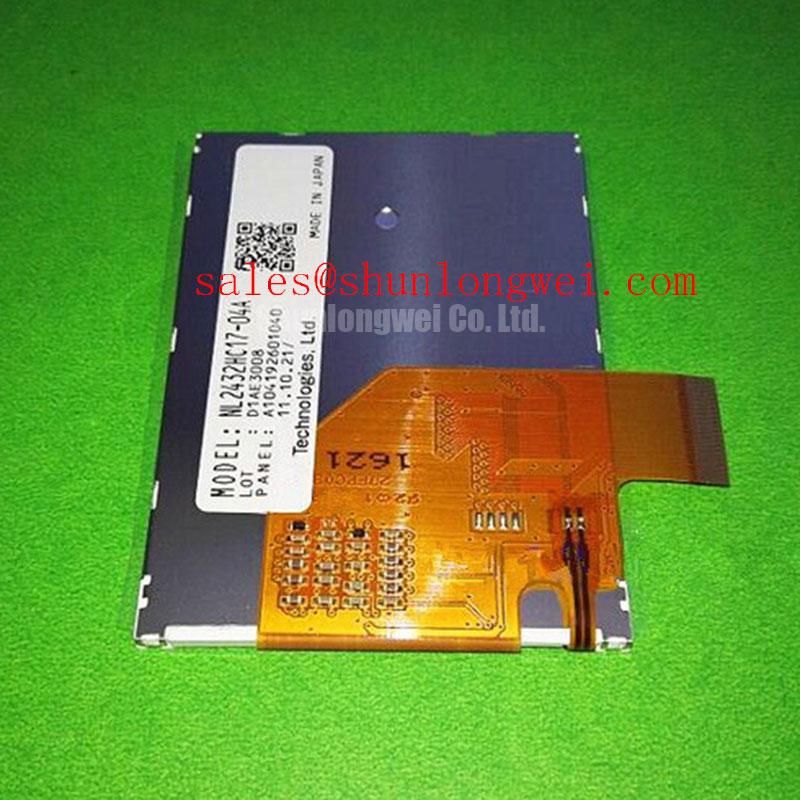

NEC NL2432HC17-04A LCD Display

Panel Brand NEC

Panel Size 2.7 inch

Resolution 240(RGB)×320, QVGA, 148PPI

Display Area 41.04(W)×54.72(H) mm

Outline Size 50.54(W)×68.62(H) mm

Brightness 140 cd/m² (Typ.)

Viewing Angle 30/30/35/30 (Typ.)(CR＞5)

Best View on 12 o'clock

Display Colors 262K   40% NTSC

Frequency 60Hz

Weight 23.0/25.0g (Typ./Max.)

Panel Model NL2432HC17-04A

Panel Type a-Si TFT-LCD , LCM

Pixel Format RGB Vertical Stripe

Bezel Opening -

Surface Clear, Hard coating (3H)

Contrast Ratio 150:1 (Typ.) (TM)     15:1 (Typ.) (RF)

Display Mode TN, Normally White, Transflective

Response Time 7/23 (Typ.)(Tr/Td)

Lamp Type 4S1P WLED , Without Driver

Touch Screen Without

Application Handheld & PDA

Signal Interface CMOS (1 ch, 6-bit) + SPI , 45 pins FPC

Input Voltage 3.0V (Typ.)

Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
