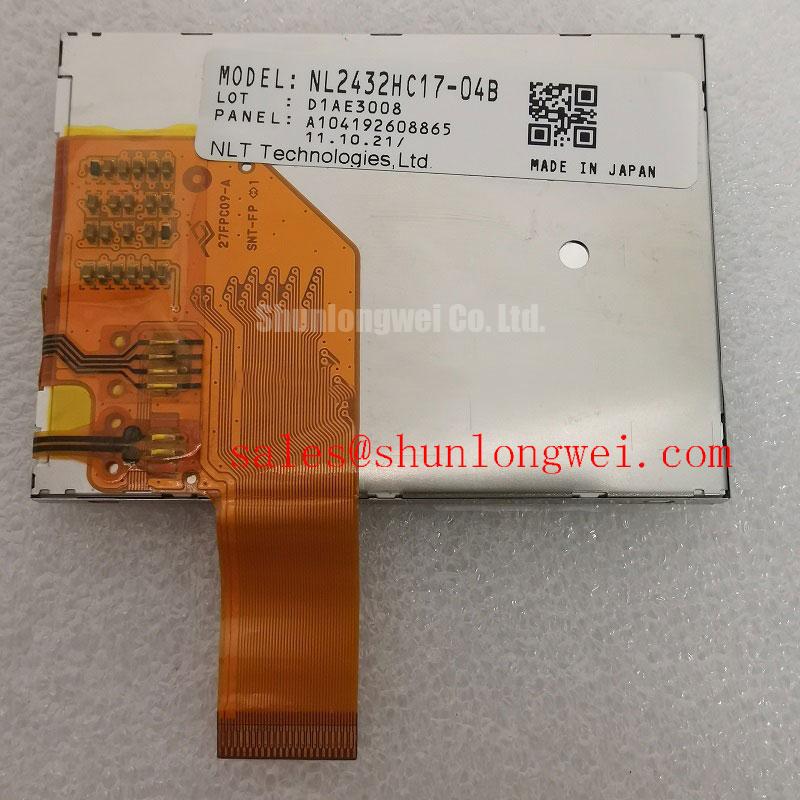

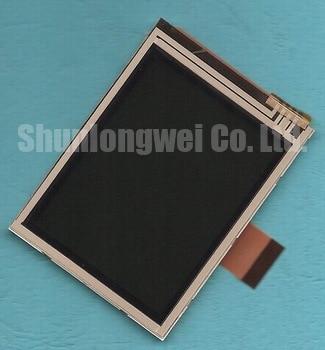

NEC NL2432HC17-04B LCD Display

Brand NEC

Model NL2432HC17-04B

Diagonal Size 2.7 inch

Type a-Si TFT-LCD, LCM

Pixel Format 240(RGB)×320  [QVGA]  148PPI

Configuration RGB Vertical Stripe

Active Area 41.04(H)×54.72(V) mm

Outline Dim 50.54(H)×68.62(V) mm

Bezel Area 43.04(H)×56.72(V) mm

Treatment Clear, Hard coating (3H)

Luminance 120 cd/m² (Typ.)

Contrast Ratio 150:1 (Typ.) (TM)     15:1 (Typ.) (RF)

View Direction 12 o'clock

Response Time 7/23 (Typ.)(Tr/Td)

Viewing Angle 30/30/35/30 (Typ.)(CR＞5) Left / Right / Up / Down

Operating Mode TN, Normally White, Transflective

Support Color 262K   40% NTSCLight SourceWLED  [4S1P] , W/O Driver

Weight 28.0/30.0g (Typ./Max.)

Designed For Handheld & PDA

Frame Rate 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Panel 4-wire Resistive Touch

Interface Type CMOS (1 ch, 6-bit) + SPI , 45 pins FPC

Power Supply 3.0V (Typ.)

Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
