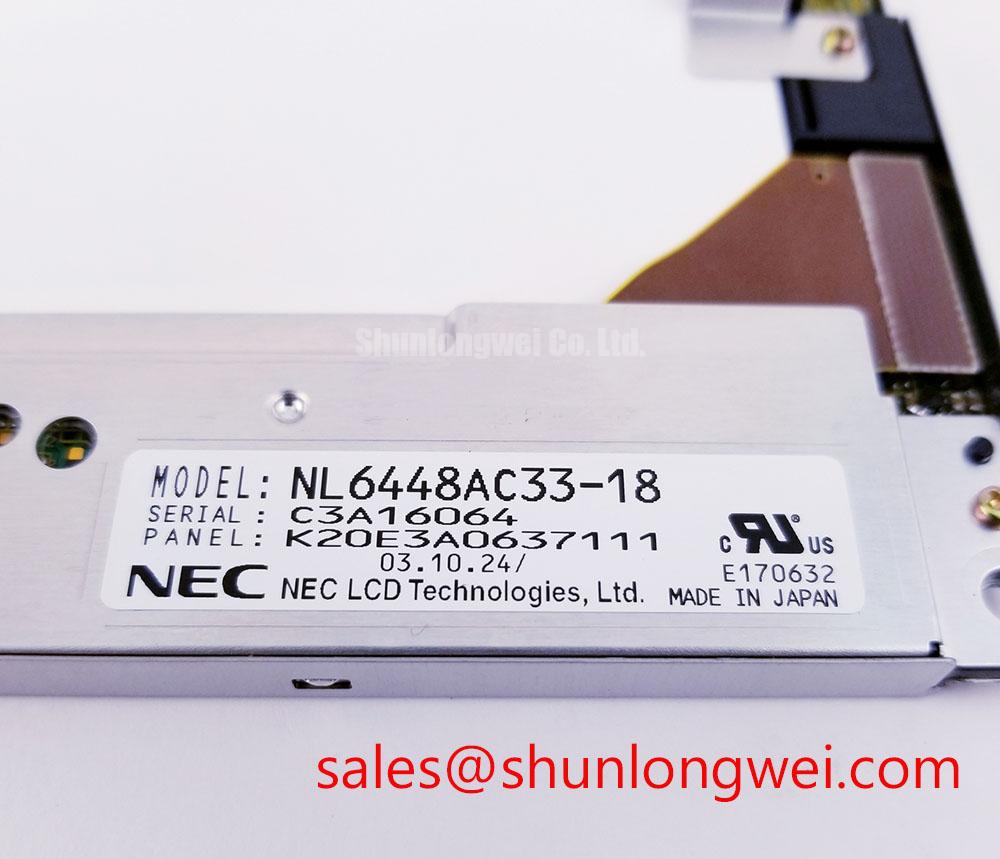

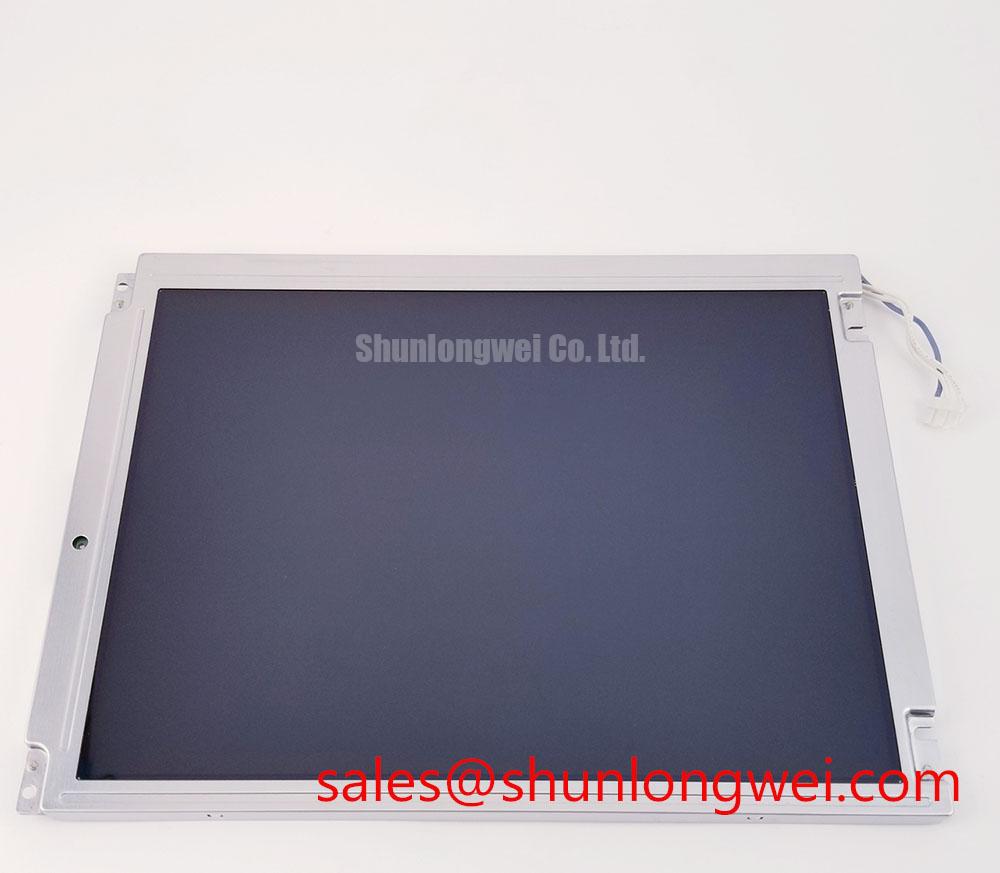

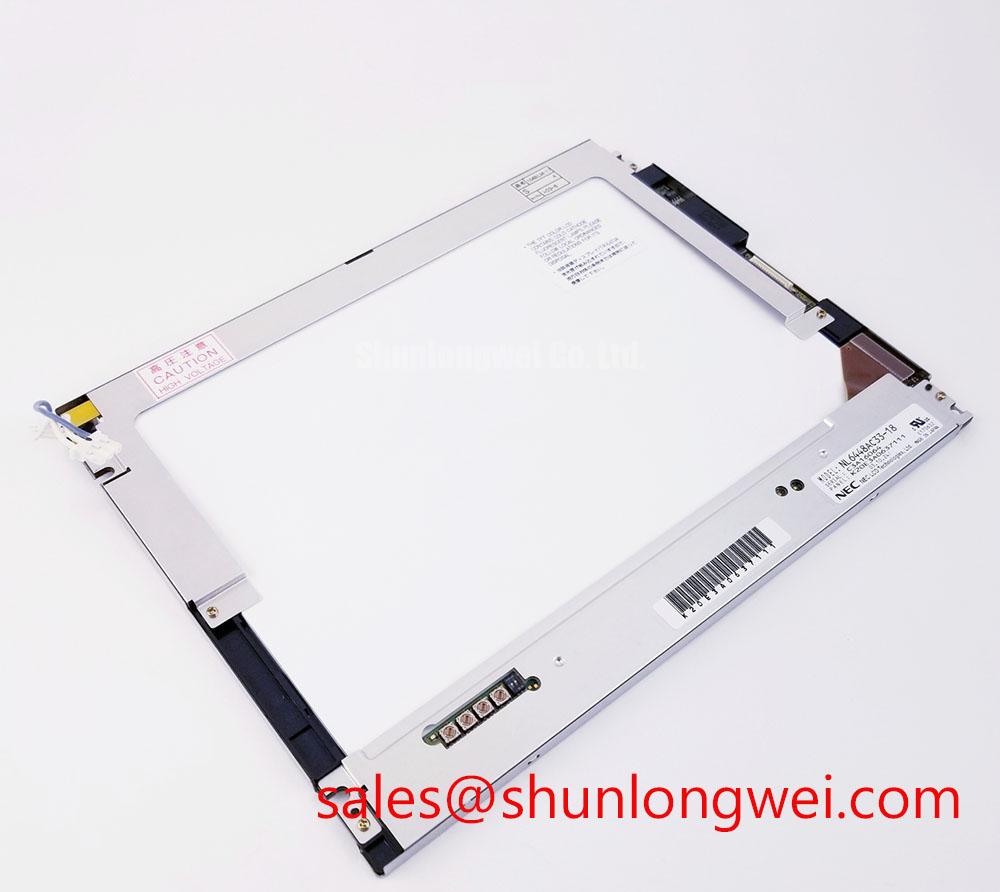

NEC NL6448AC33-18 is a 10.4 inch diagonal TFT-LCD (Thin Film Transistor - Liquid Crystal Display) module, designed and manufactured by NEC Japan.
Its resolution 640 x 480 pixels with 4:3 aspect ratio & pixel pitch of 0.207 x 0.207 mm. The display(NL6448AC33-18) has 18-bit RGB color depth, capable of displaying up to 262,144 colors.
The display module has an integrated 400 cd/m² brightness LED backlight, with contrast ratio of 500:1. The display supports both analog RGB and digital TTL (Transistor-Transistor Logic) interfaces for video input.
NL6448AC33-18 Details:
Manufacturer: NEC
Model Name: NL6448AC33-18
Screen Size: 10.4 inch
Screen Type: LCM , a-Si TFT-LCD
Pixel Number: 640(RGB)×480 (VGA)
Arrangement: RGB Vertical Stripe
Active Area(mm): 211.2 × 158.4 (H×V)
Outline(mm): 243 × 185.1 × 11 (H×V×D)
Bezel Area(mm): 215.4 × 161.8 (H×V)
Treatment: Clear
Luminance: 200 cd/m² (Typ.)
Contrast Ratio: 150 : 1 (Typ.) (TM)
Viewing Angle: 45/45/30/20 (Typ.)(CR≥10) Left / Right / Up / Down
Response: 40 (Max.)(Tr) ms
Good View at: 12 o'clock
Work Mode: TN, Normally White, Transmissive
Color Depth: 262K 56% NTSC
Backlight: 2 pcs CCFL , With Inverter
Mass: 470g (Typ.)
Used for: Industrial
Refresh Rate: 60Hz
Touchscreen: Without
Signal Type: CMOS (1 ch, 6-bit) , Connector , 31 pins
Voltage Supply: 3.3/5.0V (Typ.)(VCC)
Max. Ratings: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C ; Vibration Level: 2.0G (19.6 m/s²)
