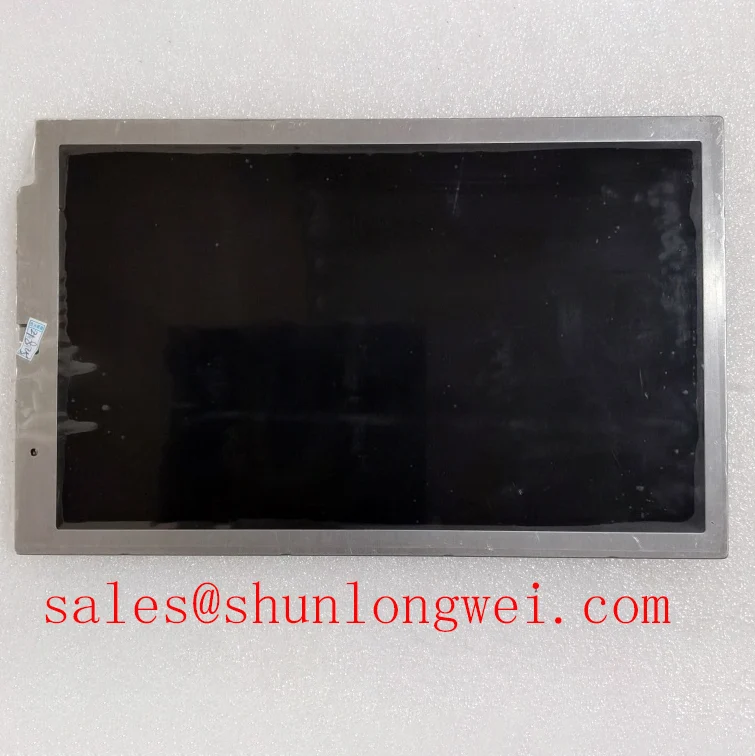

Sell NL8048BC24-09D, #NEC #NL8048BC24-09D Stock, NL8048BC24-09D NLT 9 inch LCM 800×480 400 800:1 88/88/88/88 262K/16.7M WLED LVDS, #LCD_Display, #LCD, #NL8048BC24_09D
Email: sales@shunlongwei.com
URL:
https://www.slw-ele.com/nl8048bc24-09d.html
- Brand: NEC
- Model: P/NNL8048BC24-09D
- Diagonal Size: 9.0 inches
- Panel Type: a-Si TFT-LCD, LCM
- Resolution: 800 (RGB)×480, WVGA (103 PPI)
- Pixel Format: RGB Vertical Stripe
- Active Area: 196.8(W)×118.08(H) mm
- Bezel Opening: 200.2(W)×120.4(H) mm
- Outline Dimensions (H×V×D): 220.5 × 136.5 × 8.7 mm
- Treatment: Antiglare, Hard coating (3H)
- Luminance: 400 cd/m² (Typical)
- Contrast Ratio: 800:1 (Typical)
- Viewing Angle: 88/88/88/88 (Typical) (CR≥10) Left / Right / Up / Down
- Response Time: 10/15 (Typical) (Tr/Td) ms
- Good View at: Symmetry
- Work Mode: SFT (Super Fine TFT), Normally Black, Transmissive
- Color Depth: 262K/16.7M (60% NTSC)
- Backlight: 7S3P WLED (White Light Emitting Diode), 70,000 hours, Optional
- Mass: 275g (Typical), 290g (Maximum)
- Used for: Industrial
- Refresh Rate: 60Hz
- Touchscreen: Without
- Signal Type: LVDS (1 channel, 6/8-bit), 20 pins Connector
- Voltage Supply: 3.3V (Typical)
- Max. Ratings:
- Storage Temperature: -30 ~ 80 °C
- Operating Temperature: -20 ~ 70 °C
- Vibration Level: 2.0G (19.6 m/s²)
