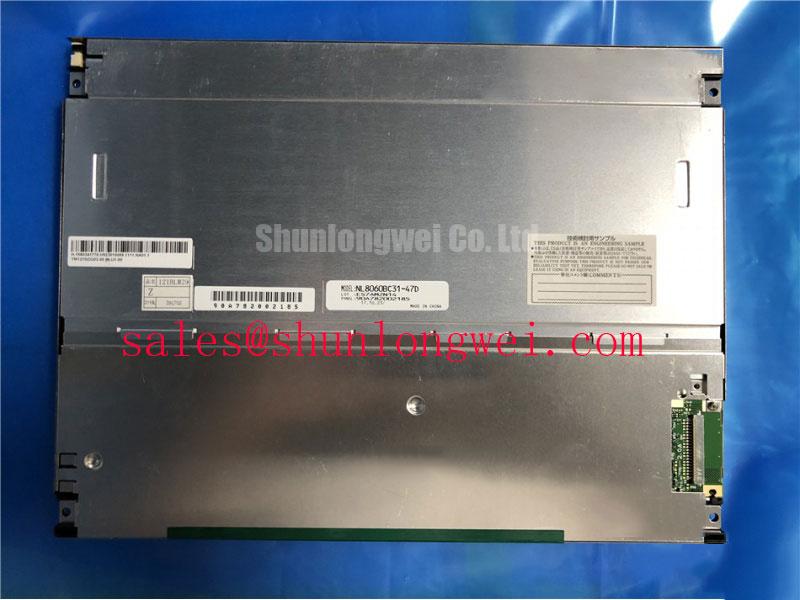

NEC NL8060BC31-47D LCD Display

Manufacturer NEC

Model Name NL8060BC31-47D

Screen Size 12.1 inch

Screen Type LCM ,   a-Si TFT-LCD

Pixel Number 800(RGB)×600   (SVGA)  82PPI

Arrangement RGB Vertical Stripe

Active Area(mm) 246 × 184.5 (H×V)

Outline(mm) 280 × 210 × 9.6 (H×V×D)

Bezel Area(mm) 249.0 × 187.5 (H×V)

Treatment Antiglare, Hard coating (3H)

Luminance 450 cd/m² (Typ.)

Contrast Ratio 900 : 1 (Typ.) (TM)

Viewing Angle 80/80/80/60 (Typ.)(CR≥10) Left / Right / Up / Down

Response 3/15 (Typ.)(Tr/Td) ms

Good View at 6 o'clock

Work Mode TN, Normally White, Transmissive

Color Depth 262K/16.7M   40% NTSC

Back light3 strings WLED , 70K hours , No Driver

Mass 580/600g (Typ./Max.)

Used for Industrial

Refresh Rate 60HzTouchscreenWithout

Signal Type LVDS (1 ch, 6/8-bit) , 20 pins Connector

Voltage Supply 3.3V (Typ.)

Max. Ratings Storage Temp.: -30 ~ 80 °C    Operating Temp.: -30 ~ 80 °C    ; Vibration Level: 2.0G (19.6 m/s²)
