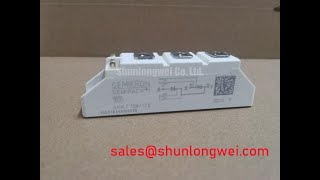

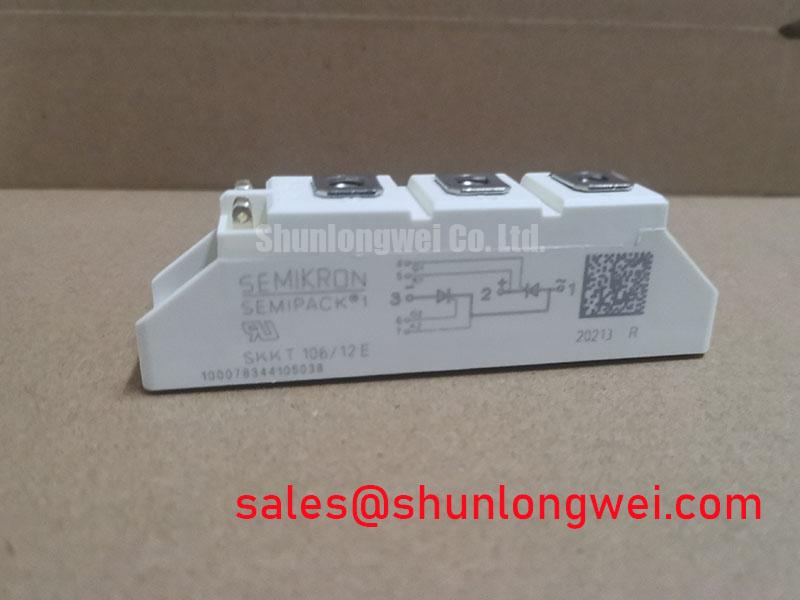

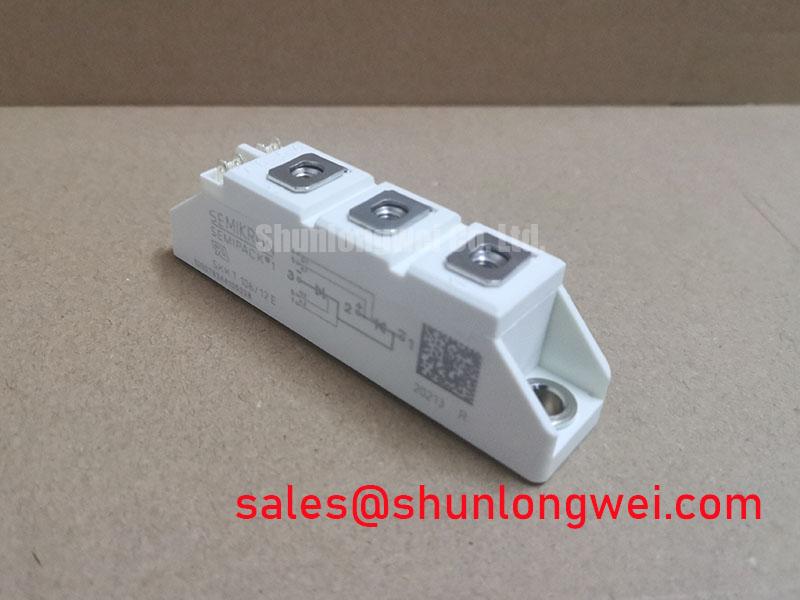

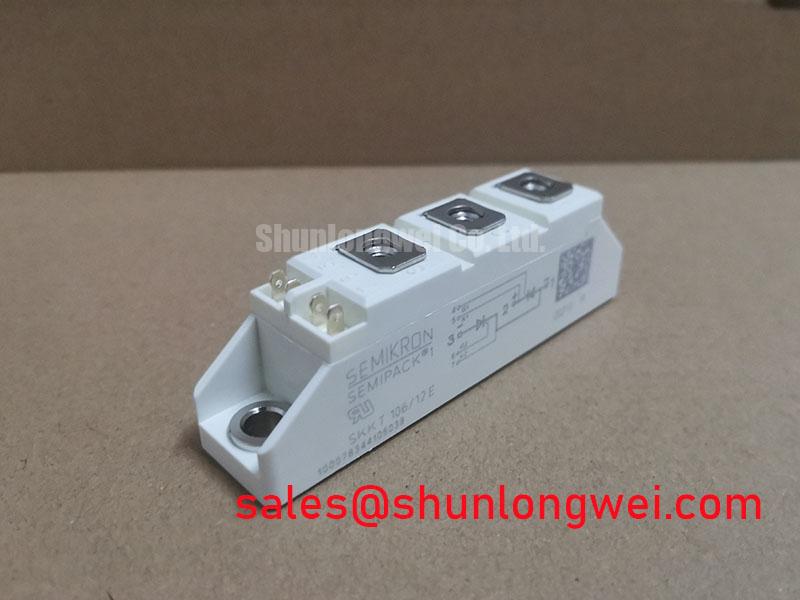

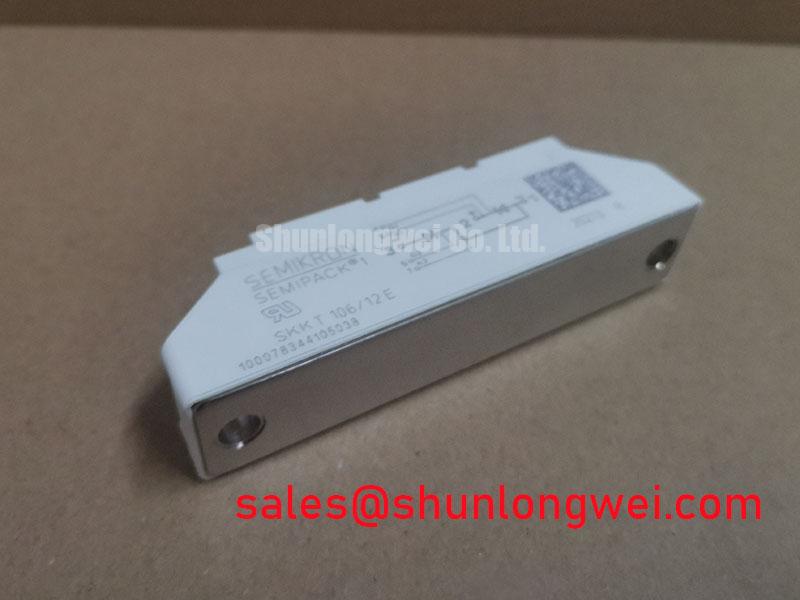

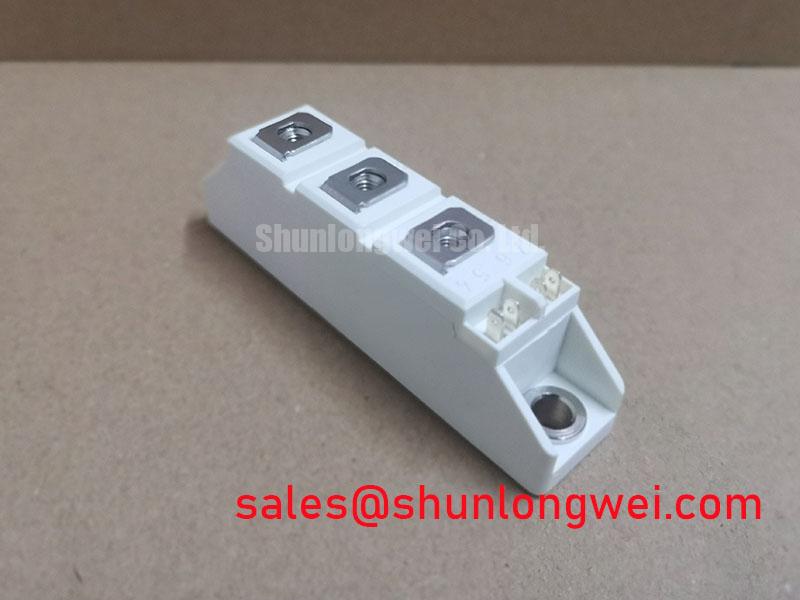

Semikron SKKT106/12E IGBT Module

Features

. Heat transfer through aluminium oxide ceramic isolated metal baseplate

. Hard soldered joints for high reliability

Typical Applications*

. DC motor control (e.g. for machine tools)

. AC motor soft starters

. Temperature control (e.g. for ovens, chemical processes)

. Professional light dimming (studios, theaters)

1) See the assembly instructions

.Absolute maximum ratings (Tc=25°C unless without specified)

Collector-Emitter voltage G-E short-circuited VRRM:1200V

Collector-Emitter voltage G-E short-circuited VRSM :1300V

Collector-Emitter voltage sin.180 Tc=85(100)°C Itav 106(78) A

Collector-Emitter voltage ID 145/180 A

Converter Surge current P3/180F Ta=35°C: 200/3*140 A

Gate-Emitter voltage G-E short-circuited VGES:±20V

Collector current DC,Tj=125°C Itsm : 2250A

Collector current DC,Tj=25°C Itsm : 1900A

Operating junction temperature Tj:+150°C

Storage temperature Tstg :-40 to +125°C

Mounting screw torque 5±15% N·m

Weight Typical value 90g
