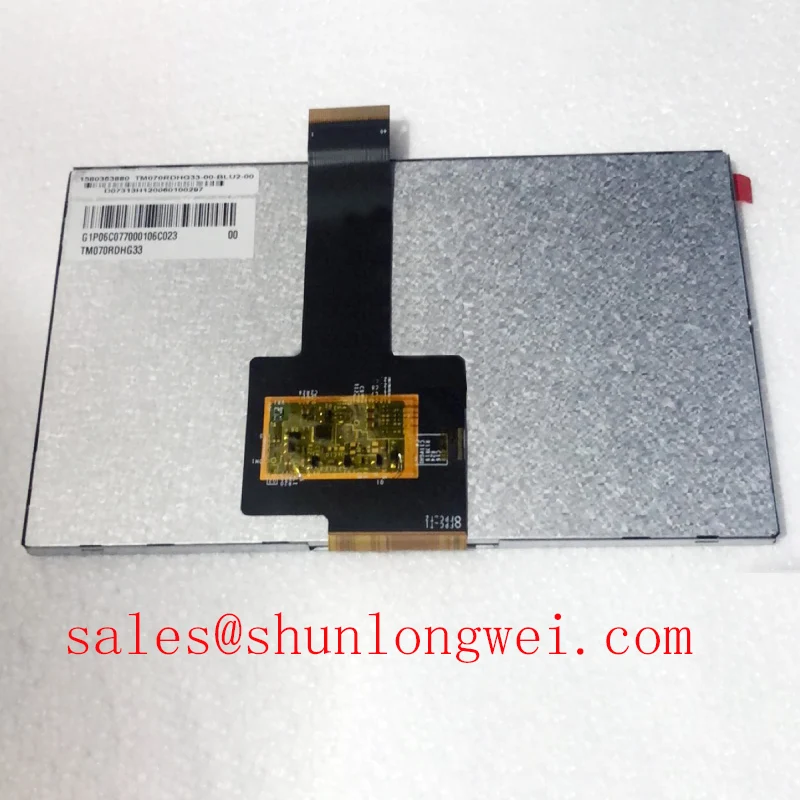

Tianma TM070RDHG33 LCD Display

Diagonal Size: 7.0 inches

Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)

Resolution: 800 (RGB) × 480 pixels, WVGA, with a pixel format of RGB Vertical Stripe

Active Area: 154.08(W) × 85.92(H) mm

Bezel Opening: 157.08(W) × 89.39(H) mm

Outline Dimensions: 164.9(W) × 100(H) × 6(D) mm

Treatment: Antiglare

Luminance: 300 cd/m² (Typical)

Viewing Angle: 70/70/60/70 degrees (Typical, CR≥10) for Left/Right/Up/Down

Good View at: 12 o'clock

Color Depth: 16.7 million colors, covering 50% of the NTSC color gamut

Mass: 160 grams (Typical)

Refresh Rate:

• • 60Hz (Panel refresh rate)
  • 120Hz (with embedded MEMC circuit, 60Hz input)
  • 120Hz+120Hz (120Hz Panel + 120Hz Backlight)
  • 240Hz (with embedded MEMC circuit, 60Hz input)

Treatment: Antiglare

Contrast Ratio: 800:1 (Typical)

Work Mode: TN (Twisted Nematic), Normally White, Transmissive

Response Time: 20 milliseconds (Typical, Tr+Td)

Backlight: 3S6P WLED (White LED), with a lifespan of 20,000 hours, no driver required

Used for: Digital Photo Frame, Portable DVD Player

Touchscreen: Not included

Signal Type: TTL (Transistor-Transistor Logic), 1 channel, 8-bit, with a 50-pin FPC (Flexible Printed Circuit)

Voltage Supply: 3.3V (Typical)

Max. Ratings:

• • Storage Temperature: -30 ~ 80 °C
  • Operating Temperature: -20 ~ 70 °C
