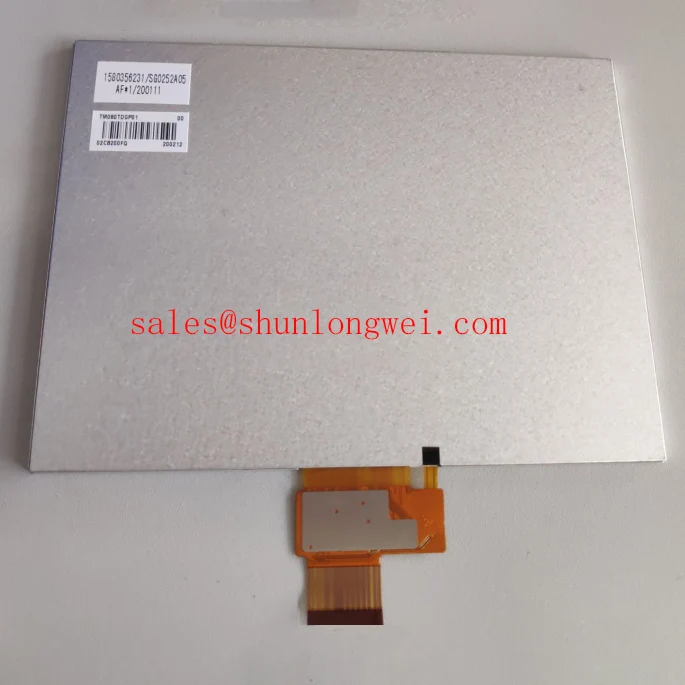

Tianma TM080TDGP01 LCD Display

• Brand: TIANMA
• Model: P/NTM080TDGP01
• Diagonal Size: 8.0 inches
• Panel Type: a-Si TFT-LCD, LCM (a-Si stands for amorphous silicon)
• Resolution: 1024 (RGB) × 768, XGA
• Pixel Format: RGB Vertical Stripe
• Active Area: 162.048 (W) × 121.536 (H) mm
• Bezel Opening: 164.65 (W) × 122.54 (H) mm
• Outline Size: 183.43 (W) × 138.35 (H) × 4.05 (D) mm
• Brightness: 580 cd/m² (Typical)
• Viewing Angle: 85/85/85/85 (Typical) (CR≥10) Left / Right / Up / Down
• Best View on: Symmetry
• Display Colors: 16.7M, 50% NTSC
• Frequency: 60Hz (normal refresh rate)
• Refresh Rates with Embedded MEMC (Motion Estimation, Motion Compensation) Circuit:

  • 120Hz (60Hz Input): Embedded MEMC Circuit
  • 120Hz+120Hz: 120Hz Panel+120Hz Backlight
  • 240Hz (60Hz Input): Embedded MEMC Circuit

• Weight: To Be Determined (TBD)
• Surface: Hard coating
• Contrast Ratio: 1200:1 (Typical) (TM)
• Display Mode: SFT (Super Fine TFT), Normally Black, Transmissive
• Touch Screen: Without
• Application: Industrial
• Lamp Type: 3S9P WLED, 30K hours, Without Driver
• Signal Interface: LVDS (Low Voltage Differential Signaling) with 1 channel, 8-bit, 40 pins FPC
• Input Voltage: 3.3/12.6/23/-7.0V (Typical) (VDD/AVDD/VGH/VGL)
• Environment:

  • Operating Temperature: -20 ~ 70 °C
  • Storage Temperature: -30 ~ 80 °C

This 8.0-inch TIANMA LCD panel offers an XGA resolution of 1024x768 pixels with a pixel format of RGB Vertical Stripe. It features a high brightness of 580 cd/m², wide viewing angles, and supports 16.7 million colors with 50% NTSC coverage. The panel also supports various refresh rates, including 60Hz, 120Hz (with MEMC circuitry), and 240Hz (with MEMC circuitry). It has a hard coating on the surface, a contrast ratio of 1200:1, and is designed for industrial applications. The backlight is provided by a 3S9P WLED configuration with a lifespan of 30,000 hours and does not require a separate driver. The panel does not include a touch screen. It uses an LVDS interface with 40 pins FPC and has various input voltage levels. The operating temperature range is -20 ~ 70 °C, with a storage temperature range of -30 ~ 80 °C.
